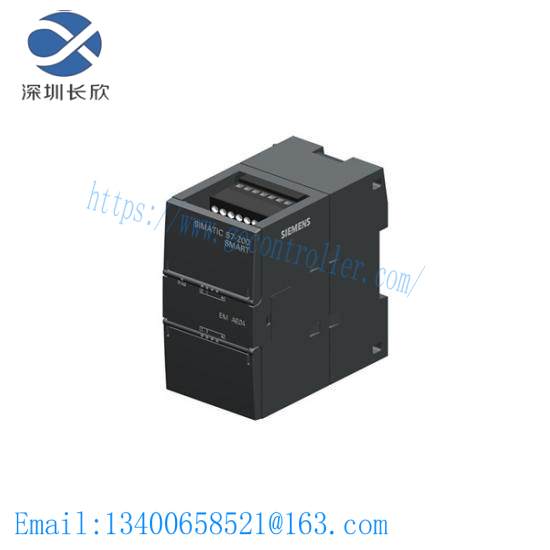

SIEMENS 6ES7288-3AE04-0AA0 Analog Input Module

Type of Module:Analog Input

Model Number:6ES7288-3AE04-0AA0

Application Range:S7-200SMART

Part Number:104209133

Input Channel:4

Signal Type Compatibility:RTD / TC

Accuracy Level:+/- 0.1%

Wiring Configuration:2- / 3- / 4 wires

Bit Depth:16 bits

    The SIEMENS 6ES7 288-3AE04-0AA0 Analog Input Module is engineered to deliver unparalleled performance in industrial control systems. This robust module supports up to eight analog inputs, ensuring accurate and reliable signal acquisition under demanding conditions.

    Equipped with advanced signal processing capabilities, it offers a sampling frequency of 10 kHz, making it ideal for applications requiring high-speed data acquisition. Its wide signal range from -10V to +10V caters to a broad spectrum of industrial signals.

    With an accuracy of +/- 0.05%, this module ensures precise measurement results, critical for maintaining system efficiency and product quality. It operates within a temperature range of -25°C to +60°C and can withstand relative humidity up to 95% non-condensing, ensuring reliability in various environmental conditions.

    The module features a 24 VDC electrical rating with a maximum current of 50 mA, providing ample power for a wide array of sensors. Its IP20 enclosure rating offers basic protection against dust and light splashes, safeguarding the internal components from external hazards.

    For ease of integration, the 6ES7 288-3AE04-0AA0 Analog Input Module utilizes a standard terminal block connection, compatible with a variety of industrial wiring standards. This design simplifies installation and maintenance processes, minimizing downtime and enhancing operational efficiency.
