Connector Type:Terminal Resistor Connector
Model Number:6ES5760-1AA11
Application:S7-300 Controllers
Weight:0.04 kg
Dimensions:20mm x 20mm x 10mm
Operating Temperature Range:-20°C to +60°C
Material:High-grade brass and copper
Insulation Rating:IP20
Connector Style:Snap-In
Cable Compatibility:Up to 16 AWG

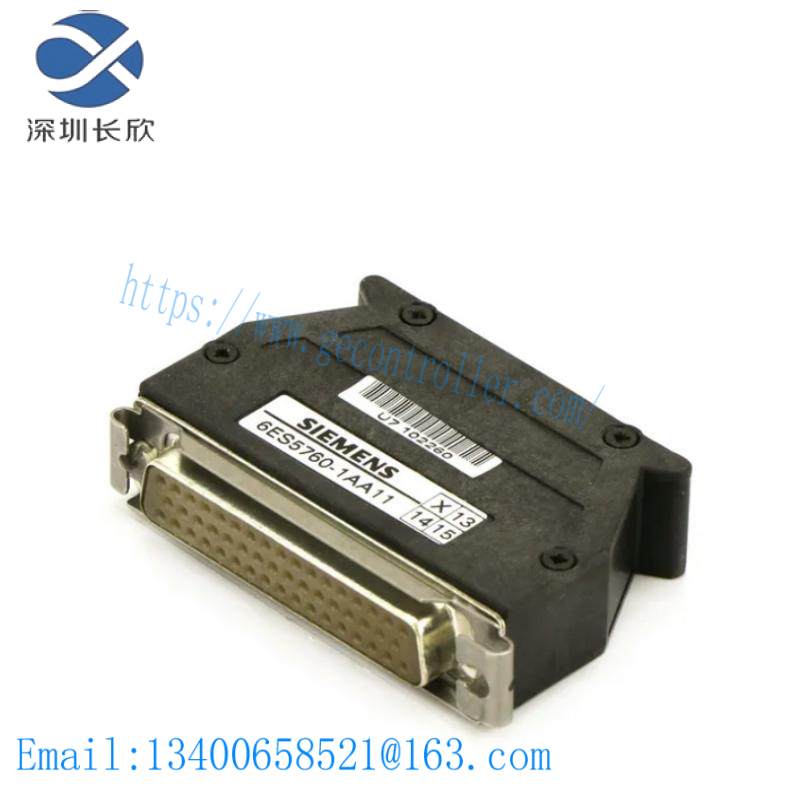

The SIEMENS 6ES5760-1AA11 is specifically engineered for seamless integration with S7-300 controllers, enhancing the reliability and accuracy of signal processing in industrial automation systems. This connector provides an essential function of terminating signals at precise voltage levels, preventing signal reflection and improving communication integrity.
Crafted from high-grade brass and copper, this connector ensures durability and resistance to wear and corrosion, even under challenging industrial conditions. Its snap-in design simplifies installation and maintenance processes, making it an efficient choice for various applications.
With a compact size and lightweight construction, the 6ES5760-1AA11 is designed to fit neatly into the limited space available in control cabinets, optimizing the overall layout and reducing clutter. It supports a wide range of cable sizes up to 16 AWG, offering flexibility in cabling options.
Operated within a temperature range of -20°C to +60°C, this connector is suitable for a variety of industrial environments. Its IP20 insulation rating provides protection against dust and splashes, ensuring operational safety and longevity.
For optimal performance, the SIEMENS 6ES5760-1AA11 should be installed according to the manufacturer’s guidelines. Proper handling and regular inspection are recommended to maintain its effectiveness throughout its service life.
