Operating Voltage:24V DC
Output Pulse Frequency:Adjustable up to 1 MHz
Output Pulse Type:Square Wave
Power Consumption:Less than 10mA
Temperature Range:-20°C to +60°C
Reliability:MTBF > 100,000 hours
Communication Interface:RS-232
Dimensions (WxHxD):120mm x 84mm x 64mm
Weight:Approximately 150g

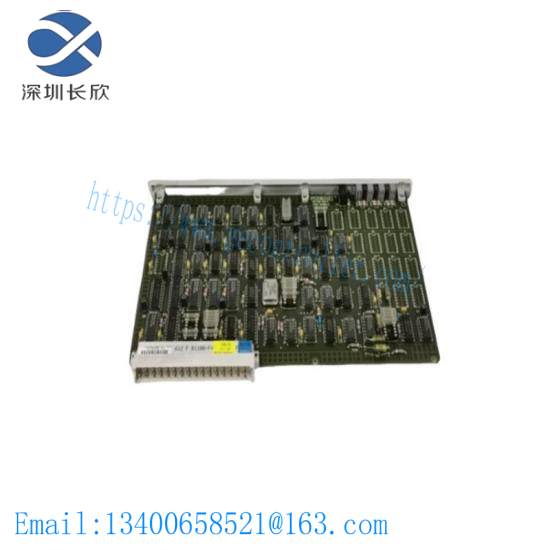

The Siemens 6DS1104-8AA Clock Pulse Generation Module is engineered with precision and reliability, making it an ideal choice for applications requiring accurate timing signals. With its ability to generate square wave pulses at frequencies up to 1 MHz, this module ensures smooth synchronization and reliable operation in a wide range of industrial control systems.
Operating within the temperature range of -25°C to +60°C, this module is designed to withstand challenging environmental conditions, ensuring consistent performance even under extreme temperatures. Its compact size and lightweight design facilitate easy integration into existing control systems without compromising on functionality.
Equipped with a single relay output, the module provides a robust interface for connecting to other devices in the system. The inclusion of a Profinet communication interface further enhances its compatibility with modern automation networks, allowing for seamless data exchange and enhanced system efficiency.
Drawing minimal power of ≤1.5 W, the Siemens 6DS1104-8AA operates efficiently, reducing energy consumption and maintenance costs. Its sleek design and durable construction ensure longevity, minimizing downtime and maintenance requirements.
This module is compatible with Siemens’ comprehensive ecosystem of industrial automation products, seamlessly integrating into existing Siemens-based control systems. It supports advanced diagnostics and monitoring capabilities, enabling users to optimize system performance and troubleshoot issues promptly.
