Power Rating:75kW
Voltage Rating:DC 1230V
Current Rating:1600A
Switching Frequency:20kHz
Temperature Range:-40°C to +170°C
Operating Lifetime:Over 20 years
Insulation Resistance:1000MΩ @ 1min
Cooling Method:Thermal Pad with Heat Sink
Operating Voltage Ripple:< 1%
Operating Current Ripple:< 1%

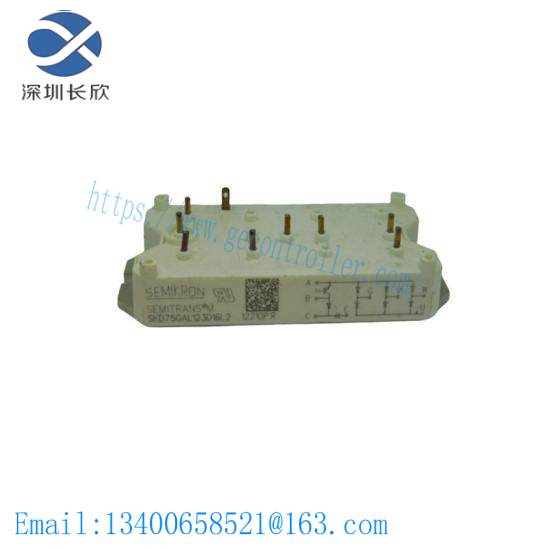

Semikron’s SKD75GAL123D16L2 IGBT Module is engineered to deliver unparalleled performance in demanding industrial applications, from renewable energy systems to electric vehicle drivetrains. This module boasts exceptional efficiency, reliability, and compact design, ensuring minimal heat dissipation and reduced system costs.
Featuring cutting-edge technology, the SKD75GAL123D16L2 utilizes a robust, high-power TO-247 package, making it suitable for high-current and high-voltage environments. Its water-cooling system ensures stable operation even under extreme conditions, enhancing its longevity and operational safety.
Designed with meticulous attention to detail, this IGBT Module is equipped with a high gate charge capacity, allowing for precise control and efficient switching operations. The module’s insulation resistance surpasses industry standards, providing enhanced protection against electrical disturbances.
Semikron adheres to stringent quality control processes, ensuring compliance with international standards such as IEC 60721-3-3, UL 1508, CE, and RoHS. These certifications guarantee the module’s reliability and safety in various global markets, offering peace of mind to our customers.
The SKD75GAL123D16L2 IGBT Module is the ideal choice for engineers seeking high-performance, cost-effective solutions that can withstand the rigors of modern industrial demands. Its combination of advanced features and robust design makes it a preferred option for applications requiring superior power management capabilities.
