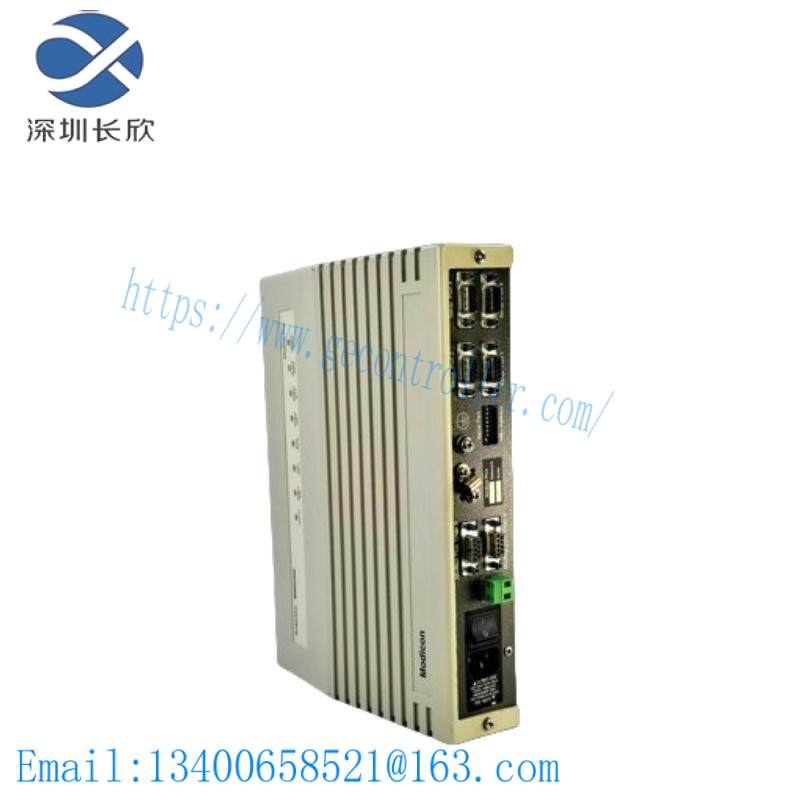

Schneider NWBM85C002: Modicon Bridge/Multiplexer Module Modbus –SA

Brand:Schneider Electric

Model:NWBM85C002

Submodel:BM85C002

Category:Bridge/Multiplexer Module

Protocol:Modbus

Operating Range:10-30 VDC

Current Consumption:Max. 20 mA

Communication Interface:RS485

Number of Channels:8

Input Voltage:24 VDC

Output Voltage:24 VDC

Load Capacity:Up to 1 A per channel

Communication Speed:9600 bps

Power Supply:12-24 VDC

Environmental Conditions:-20°C to +60°C

Dimensions:120mm x 100mm x 50mm

Weight:200g

Connection:DIN Rail

Protocol Compatibility:Modbus RTU, ASCII, TCP

    The Schneider NWBM85C002 is a state-of-the-art solution for enhancing the efficiency and connectivity of industrial control systems. Its robust design ensures reliability in harsh industrial environments.

    Equipped with advanced Modbus protocol support, this module enables seamless data exchange between various devices, facilitating a more streamlined and efficient production line operation.

    With its compact size and DIN rail mounting capability, the NWBM85C002 is easily integrated into existing machinery without requiring extensive modifications.

    Each channel is capable of handling high loads, making it suitable for a wide range of applications, from simple monitoring tasks to complex control scenarios.

    This module boasts an impressive operating temperature range, ensuring it performs reliably in both cold and hot environments, a critical feature in many industrial settings.

    For optimal performance, it’s recommended to pair the NWBM85C002 with Schneider Electric’s comprehensive suite of software tools and resources, which provide setup assistance and troubleshooting guides.
