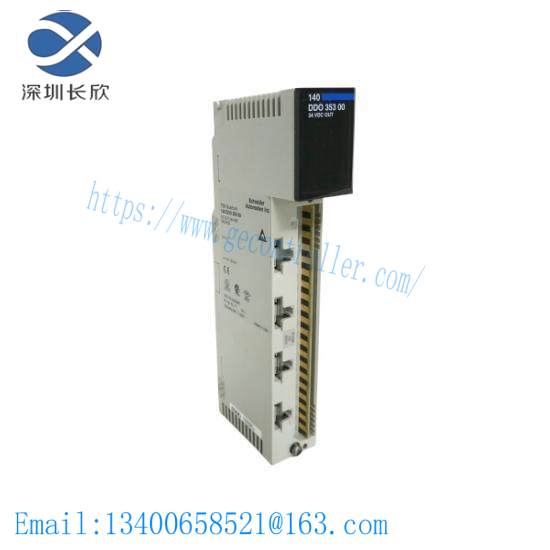

Schneider Modicon 140DDO35300 Discrete Output Module

Product Type:Discrete Output Module

Model Number:140DDO35300

Manufacturer:Schneider Electric

Automation Platform:Modicon Quantum

Output Quantity:32

Output Voltage:24 V DC

Channel Groups:4 groups of 8

Power Dissipation:1.75 W + (0.4 V x total module load current)

Bus Current Requirement:Not specified

Product Weight:0.99 lb (US) (0.45 kg)

Input Impedance:Not specified

Absolute Maximum Input Voltage:30 V continuous, 56 V during 1.3 ms decaying pulse

Input Voltage Limits:19.2…30 V

Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V

    The Schneider 140DDO35300 Discrete Output Module Modicon Quantum is engineered for seamless integration into complex industrial control systems, providing robust and precise control outputs. Its compact design ensures efficient use of space on control panels, making it suitable for a wide range of applications from packaging lines to robotics.

    Featuring advanced communication capabilities, this module supports Modbus protocol, facilitating easy communication with other devices in the network. This compatibility ensures a smooth integration into existing control systems, reducing the need for extensive customization.

    With a wide operating temperature range from -20°C to +60°C, this module is designed to withstand harsh industrial environments, ensuring reliability in demanding conditions. Its high current consumption and output capacity allow for precise control over actuators and motors, contributing significantly to the overall performance of automation systems.

    The Schneider 140DDO35300 Discrete Output Module Modicon Quantum incorporates state-of-the-art technology to ensure low power consumption, reducing operational costs and enhancing energy efficiency. Its SPST relay type provides quick switching actions, minimizing downtime and improving system responsiveness.

    For maintenance and troubleshooting, the module is equipped with diagnostic tools that help identify issues promptly. This feature minimizes downtime and reduces maintenance costs, enabling smoother operations and increased productivity in industrial settings.
