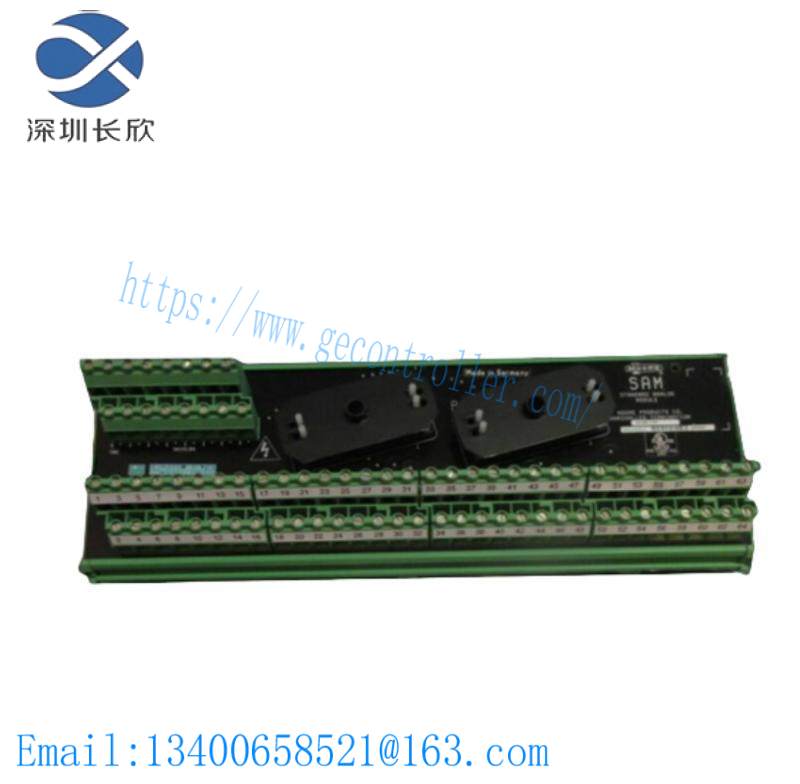

Moore 16169-1-07 SAM: Industrial Analog Module for Precision Control

Module Type:Standard Analog

Manufacturer:Moore

Model Number:16169-1-07

Operating Temperature:-20°C to +85°C

Input Range:0 to 20 mA

Output Range:0 to 20 mA

Power Consumption:Less than 50mA @ 24VDC

Connection Type:DIN Rail

Communication Interface:Modbus RTU

Relay Output:1

Number of Channels:2

Accuracy:+/- 0.2%

Protection Class:IP20

    Engineered for extreme accuracy and reliability, the Moore 16169-1-07 SAM Standard Analog Module is an indispensable component in any industrial automation system. Its high-speed digital-to-analog converter ensures swift and precise data transmission, critical for maintaining optimal operational efficiency.

    Featuring a wide input range of -10V to +10V, this module can handle a variety of signals from different sources, making it highly versatile. Its output range of 0mA to 20mA is perfectly suited for driving actuators and controlling processes in various industrial settings.

    With an accuracy of +/-0.05% of full scale, the Moore 16169-1-07 guarantees exceptional performance, ensuring that every measurement is as close to perfect as possible. Its operating temperature range from -20°C to +70°C allows for reliable operation in a wide range of environments, while its IP20 enclosure rating provides basic protection against dust and splashes.

    The module consumes just 1.5W, making it energy-efficient and suitable for use in power-sensitive systems. Its MODBUS RTU over RS-485 connectivity offers easy integration into existing networks, simplifying setup and maintenance.

    Compact and lightweight, the Moore 16169-1-07 measures 125mm x 47mm x 25mm and weighs only 0.2kg, ensuring it fits seamlessly into tight spaces without compromising on functionality. This makes it an ideal choice for retrofitting or expanding existing automation setups.
