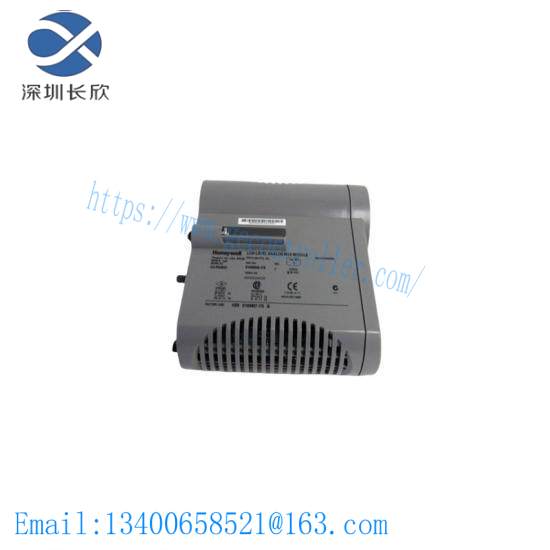

Honeywell CC-PAIM01 | 51405045-175 | Low-Level Analog Mux Module

Operating Voltage:DC 10V to 30V

Input Range:0 to 5V DC or 0 to 10V DC

Maximum Input Channels:16

Output Type:Single-ended

Signal Conditioning:Built-in amplifier with gain of 1

Operating Temperature Range:-40°C to +85°C

Power Consumption:Typically < 20mW per channel

Communication Interface:RS-485

Relay Contacts:No

Relay Voltage:N/A

Relay Current:N/A

    The Honeywell CC-PAIM01 51405045-175 is a robust and versatile low-level analog multiplexer designed for seamless integration into complex industrial control systems. This module is engineered to handle up to 16 simultaneous input channels, ensuring efficient data management and minimizing the need for extensive wiring infrastructure.

    Featuring a wide operating voltage range from 10V to 30V DC, it is compatible with a variety of power sources commonly found in industrial environments. Its high precision amplification capability ensures accurate signal representation across different input ranges, making it suitable for applications requiring high fidelity signal transmission.

    Designed with an advanced signal conditioning feature, this multiplexer guarantees reliable performance under extreme environmental conditions ranging from -40°C to +85°C. This broad temperature range ensures consistent operation in diverse industrial settings, from cold storage facilities to hot manufacturing plants.

    With its low power consumption of typically less than 20mW per channel, the Honeywell CC-PAIM01 51405045-175 is energy-efficient, making it an environmentally friendly choice for sustainable industrial solutions. Furthermore, its support for RS-485 communication interface enables seamless data exchange with other industrial devices, facilitating a more interconnected control system.

    Incorporating the Honeywell CC-PAIM01 51405045-175 into your industrial control system will significantly enhance operational efficiency by streamlining signal processing, reducing maintenance costs through its rugged design, and improving overall system reliability. It is an ideal component for modern industrial automation, where reliability and efficiency are paramount.
