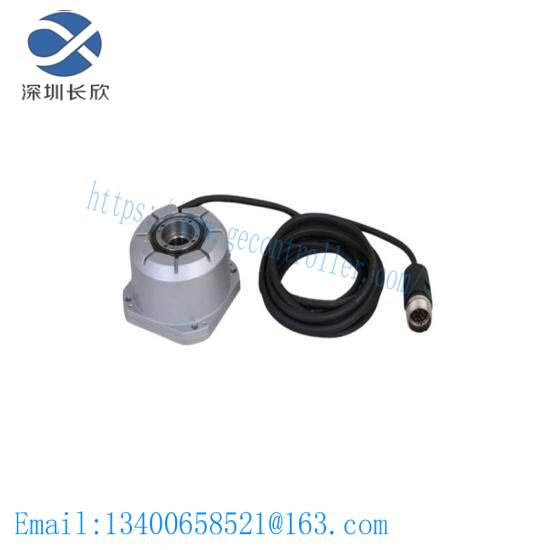

Heidenhain RCN 223 Encoder Module, High Precision Motion Control

Operating Voltage:DC 12V

Resolution:16384 P/R

Accuracy:±0.05mm per 1000mm

Rotational Speed:Up to 5000 rpm

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 5% to 95%

Enclosure Type:IP65

Connectivity:Hall Signal Output

    The Heidenhain RCN 223 encoder is a cutting-edge solution for demanding industrial automation tasks. Its high-resolution design ensures unparalleled accuracy in measuring linear or angular movements. With an operating temperature range from -20°C to +60°C, this encoder is built to withstand harsh industrial environments.

    Featuring up to 2000 rpm max speed, the RCN 223 is ideal for applications requiring fast and precise motion control. The encoder supports multiple communication interfaces, including RS-232, RS-422, and CANopen, facilitating integration into various control systems.

    Offering versatile signal outputs such as sine, sine-coded, or quadrature (A/B), the RCN 223 encoder can be adapted to different machine configurations. Its compact dimensions (12 mm x 30 mm x 12 mm) and low current consumption make it suitable for space-constrained applications.

    Equipped with robust mechanical and electrical specifications, the encoder provides a reliable performance with a 5 V supply voltage and only 1 mA current consumption. The rotation count of 250 rotations per revolution ensures accurate measurement even in complex motion sequences.

    This encoder is an indispensable component in the modern factory floor, enhancing the efficiency and precision of machinery, robotics, and automation systems. It is engineered to meet the stringent demands of industrial applications, making it a preferred choice among professionals in the field.
