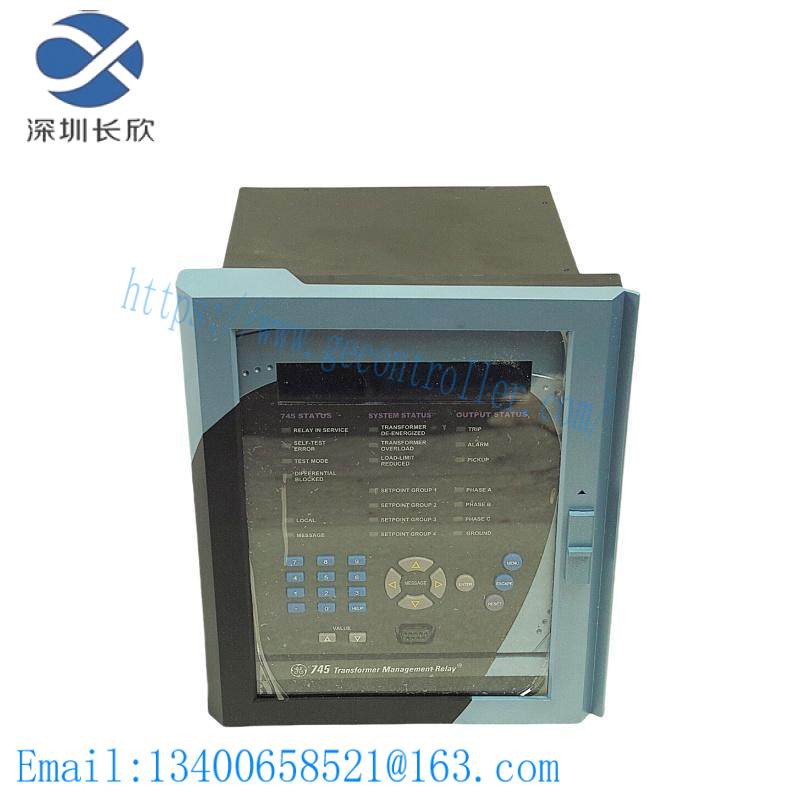

GE SR745-CASE: 745-W2-P5-G5-HI-T Transformer Management Relay

Power Supply Voltage:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz

Control Power Range:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz

Number of Windings Per Phase:3

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display:40 character Enhanced LCD

Dimensions:Height: 9″; Width: 7 ⅛”; Depth: 7″

Case Material:Durable, heat-resistant material

Protection Features:Dynamic CT Ratio Mismatch Correction, Overexcitation Protection, Transformer Overload Protection, Frequency Rate-of-Change Detection, Hottest Spot Monitoring

    The GE SR745 CASE 745-W2-P5-G5-HI-T Transformer Management Relay is a cutting-edge solution designed for industrial control applications, offering unparalleled protection and monitoring capabilities. Its enhanced 40 character display provides clear, easy-to-read information about system status and settings.

    With its advanced adaptive features, this relay can dynamically adjust to changing conditions in real-time, ensuring that transformers and associated equipment operate under optimal parameters. The device supports a wide range of applications, from small-scale installations to large industrial complexes.

    Featuring an ergonomic design with a sleek, compact footprint, the relay is compatible with standard 19” panels, making it a versatile addition to any control room setup. The robust enclosure ensures durability and reliability in harsh environments.

    Equipped with multiple LED indicators, the relay offers immediate alerts for various operational statuses and potential issues, enabling proactive maintenance and minimizing downtime. The modular design allows for seamless integration with existing systems, enhancing overall system efficiency and safety.

    Built with high-quality materials, the GE SR745 CASE 745-W2-P5-G5-HI-T Transformer Management Relay ensures longevity and performance, backed by General Electric’s commitment to excellence in industrial automation. Experience peace of mind with this advanced relay, designed to protect your critical infrastructure.
