Board Type:Digital Signal Processor Control Board
Functional Acronym/Abbreviation:DSPX
Processor Frequency:60 MHz
Input Voltage:5 V
Power Consumption:1.2 W
Backplane Input Quantity:6
I/O Connector Quantity:3
LED Light Indicators:2 (Fault and Status)
Pin Quantity for Data Bus Function:32
Firmware Version:Application Code, Boot Loader, and Configuration Parameters
Manufacturer:General Electric Company USA, GE Industrial Systems
Part Number:IS200DSPXH1DBC
Series:Mark VI

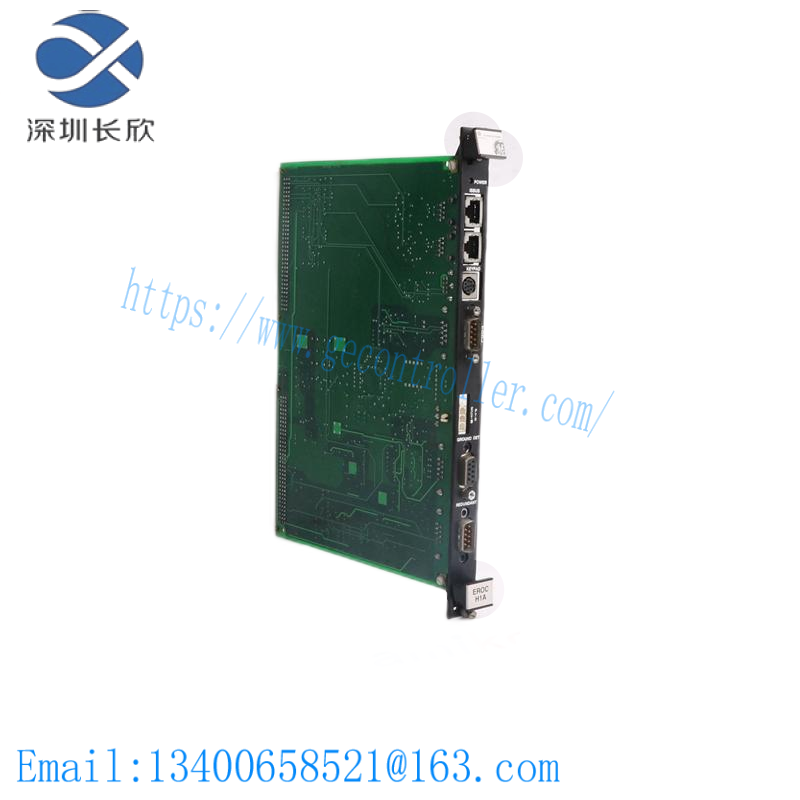

The IS200DSPXH1DBC is a critical component in excitation control systems, providing precise digital signal processing capabilities. Its core function is to manage and control the electrical signals within these systems, ensuring optimal performance and stability.
This control board utilizes a 60 MHz digital signal processor that delivers fast and accurate data processing, making it ideal for applications requiring high-speed signal manipulation. Additionally, the board includes an application-specific integrated circuit (ASIC), which enhances its functionality and efficiency.
Designed for durability and reliability, the IS200DSPXH1DBC features conformal coating on its printed circuit board (PCB). This protective layer shields the board against environmental contaminants such as moisture, dust, and corrosive agents, extending its operational lifespan.
The board’s central control module runs on Windows software, offering users a familiar and user-friendly interface for easy configuration and management. With two (master or slave) 5 Mb/s ISBus interfaces, the board supports efficient communication with other system components.
Whether you are upgrading an existing excitation control system or building a new one, the IS200DSPXH1DBC offers unparalleled performance and reliability. It is compatible with the GE Industrial Systems EX2100 series and is widely recognized in the industrial automation industry by its functional industry acronym DSPX.
