Module Type:Application Control Layer Module
Compatibility:For use with EX2100 series excitation control systems
Dimensions:W x H x D: 170mm x 85mm x 30mm
Weight:Approximately 0.5kg
Faceplate:Wide, printed with manufacturer logo and board number
Slots Required:Two slots in the rack
Board Number:Printed on the board and faceplate
Board Code:6BA01 printed along one edge
Connectors:Includes a vertical male pin connector
The IS200ACLEH1A boasts a wide faceplate adorned with the manufacturer’s logo and board number, making it easily identifiable within your system setup.
This module occupies two slots in the EX2100 Excitation Control System Rack due to its expansive design, ensuring compatibility and ease of installation.

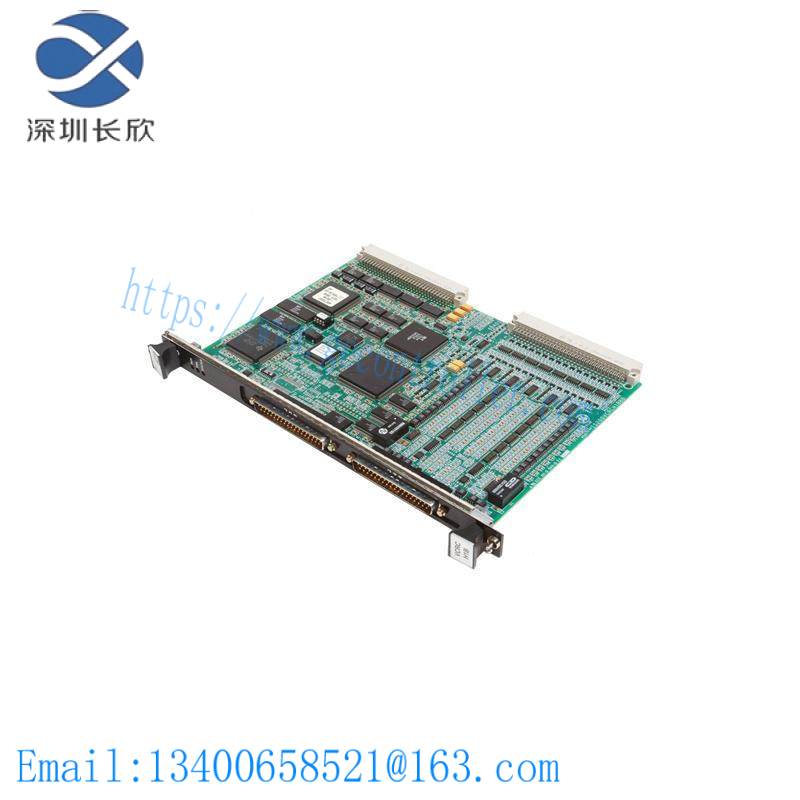

The core component of the IS200ACLEH1A is the PCB board which features a distinct code ‘6BA01’ printed along one edge, enhancing traceability and maintenance.
Key onboard components are marked with reference designators as detailed in GE manuals like GEI-100584A, aiding in quick identification and troubleshooting.
Equipped with a vertical male pin connector located at the upper right-hand corner, the IS200ACLEH1A ensures robust connectivity and reliable data transmission.
