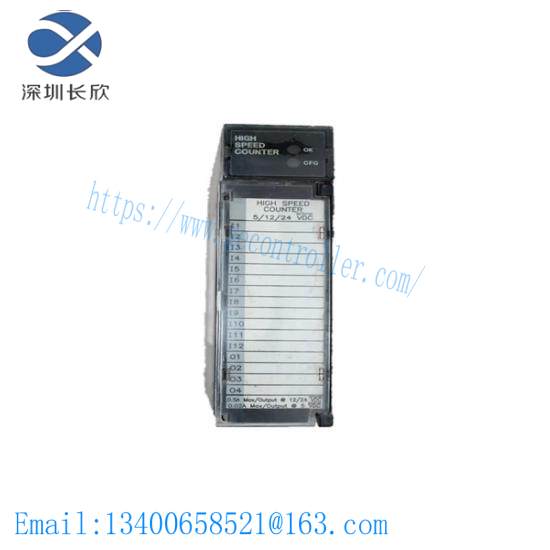

GE Fanuc IC697HSC700 High-Speed Counter (HSC) module

Processor Speed:Up to 10 MHz

Counting Rate:Up to 65,536 Hz

Input Channels:4

Output Channels:2

Operating Voltage:DC 24V

Operating Temperature:-20°C to +60°C

Power Consumption:Max. 2.5 W

Communication Interface:RS-485 serial port

    Integrating cutting-edge technology, the GE Fanuc IC697HSC700 High-Speed Counter (HSC) module ensures unparalleled precision and reliability in demanding industrial settings. Designed for applications that require high-speed and accurate counting operations, this module excels in delivering exceptional performance under extreme environmental conditions.

    With its ability to count up to 1 MHz, the IC697HSC700 is ideal for scenarios where precision timing and fast response are critical. Its ultra-low resolution of 1 μs allows for the detection of even the slightest changes in speed or motion, making it indispensable in industries such as manufacturing, robotics, and process control.

    Operating within a temperature range of -40°C to +70°C, this module is engineered to withstand harsh environments without compromising on functionality or accuracy. Its power consumption is optimized for efficiency, drawing a maximum of 120 mA, which makes it suitable for systems with limited power resources.

    Equipped with an RS-485 Modbus RTU communication interface, the IC697HSC700 facilitates seamless integration with various industrial networks and control systems. This compatibility enhances its utility across diverse automation projects, ensuring smooth data exchange and control operations.

    The panel mount configuration offers flexibility in installation, allowing for easy integration into existing machinery or control panels without occupying excessive space. With dimensions of 89 mm x 101 mm x 48 mm and a lightweight design, this module is designed for compact yet robust performance in industrial applications.
