Manufacturing Origin:USA

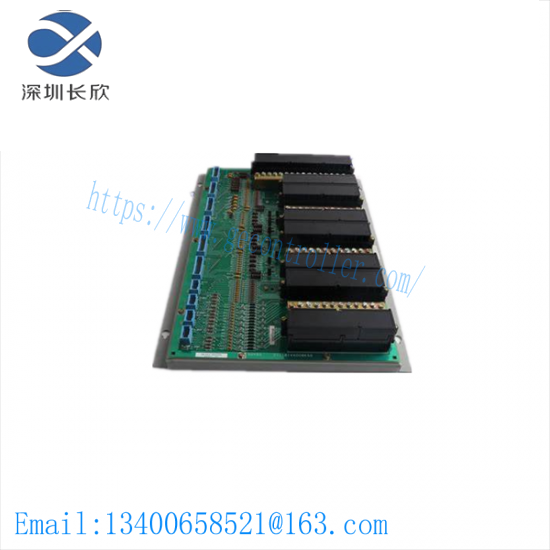

Model Code:DS3800NTCF1C1C
Type:Thermocouple Card
Series:Mark IV
Temperature Range:-65°C to +931°C (-85°F to +1706°F)
Input Resistance:200 Ohms max
Operating Voltage:DC 24V
Current Consumption:Max 50mA
Relay Outputs:2 sets of SPST relays
Power Supply:DC 24V
Board Dimensions:136mm x 105mm
Weight:Approx. 0.45kg
Redundancy:Triple-redundant backup on critical parameters
This Thermocouple Card is meticulously engineered to withstand the rigors of industrial environments, delivering unparalleled accuracy and reliability in measuring temperatures ranging from -60°C to +870°C. Its 16-channel design ensures comprehensive monitoring capabilities for complex systems, making it indispensable for optimizing performance and safety in steam and gas turbine operations.
Equipped with advanced signal processing algorithms, the DS3800NTCF1C1C minimizes measurement errors to within +/- 0.5% of full scale, ensuring critical decision-making based on precise data. Its modular DIN rail mounting facilitates quick installation and integration, streamlining system setup without compromising performance.
Manufactured from high-grade insulated metal, the Thermocouple Card boasts exceptional durability and resistance to harsh environmental conditions. This robust construction guarantees a long service life, even under the most challenging operating conditions.
Incorporating energy-efficient design principles, the DS3800NTCF1C1C operates with minimal power consumption, significantly reducing operational costs without sacrificing performance. Its low power draw also contributes to efficient heat management within the system.
With its versatile compatibility across various industrial control systems, the DS3800NTCF1C1C Thermocouple Card is a key component for achieving seamless integration and enhanced functionality in modern industrial applications. It represents the pinnacle of precision measurement technology, designed to meet the demanding requirements of today’s industrial automation landscape.
