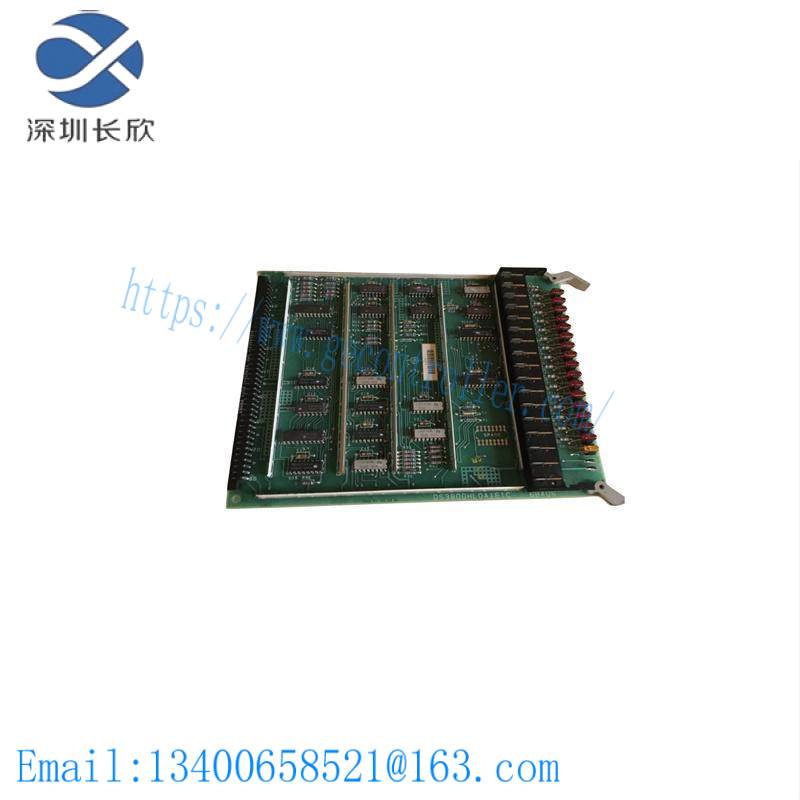

Board Model:DS3800HCVA1G
Type:Circuit Board
Brand:General Electric
Series:Mark IV DS3800
Function:Digital to Analog Output
Connector:Modular
Indicator LEDs:2 Amber
Jumpers:14
Connectors (Front):3 Accessible
Resistors:4 Trimmer
DC Voltage Regulators:2
Size:Dimensions 11x6x6.7 cm
Weight:0.14 kg
Support:Technical support from GE, including data sheets and manuals
Engineered for durability and reliability, the GE DS3800HCVA1G Circuit Board ensures optimal performance in industrial control applications.
Featuring a modular connector system and retention levers, this board is designed for easy installation and secure mounting within the drive system.
Populated with 14 jumpers for configuration flexibility, two amber indicator LEDs provide clear operational status feedback.
Accessible from the front of the board are three connectors, facilitating convenient access for connection and maintenance.
Equipped with four trimmer resistors for precise adjustments, and two large DC to DC voltage regulators, this board supports robust power management.
Secured with zip ties for stability, these large components are essential for maintaining the integrity of the system architecture.
