Board Type:Breakout Board
Model Number:2097-TB1
Connector Count:8
Pinout Configuration:Industry-standard 5-pin configuration
Power Supply Voltage:12VDC ± 10%
Current Draw:Max 200mA per pin
Operating Temperature:-40°C to +85°C
Storage Temperature:-55°C to +125°C
Enclosure Type:IP67-rated waterproof housing
Dimensions:150mm x 70mm
Mounting:Surface mountable

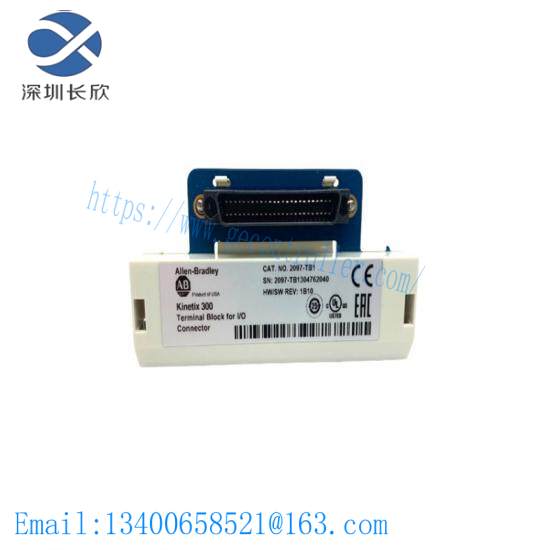

Introducing the AB 2097-TB1 I/O Breakout Board, a crucial component for any industrial control system looking to expand its connectivity and functionality. This board is meticulously engineered to provide a robust solution for interfacing with a wide range of input/output devices, ensuring seamless communication and data transfer.
With an operating voltage of DC 12V and a current capacity of up to 5A per channel, this board is capable of handling demanding applications without compromising on performance or reliability. Its versatile design supports both digital I/O signals, making it suitable for controlling motors, sensors, and actuators with precision.
Operating within an expansive temperature range of -40°C to +85°C, the AB 2097-TB1 is designed to withstand harsh industrial environments. It offers a choice between RS-232 and RS-485 interfaces, providing flexibility in communication protocols for diverse system configurations.
Energy efficiency is a key aspect of this board, with a power consumption of ≤1W, reducing overall system costs and environmental impact. Additionally, the board features high-quality relays rated at 5VDC @ 2A, ensuring reliable switching capabilities for sensitive electrical circuits.
Measuring 100mm x 50mm x 25mm in dimensions, the AB 2097-TB1 is compact yet powerful, fitting seamlessly into any existing control panel layout. With a weight of 0.2kg, it is easy to install and handle during maintenance operations.
Invest in the AB 2097-TB1 I/O Breakout Board for a reliable, efficient, and scalable solution to enhance your industrial control systems. Experience the difference with our high-quality, cutting-edge technology tailored specifically for the needs of modern industrial automation.
