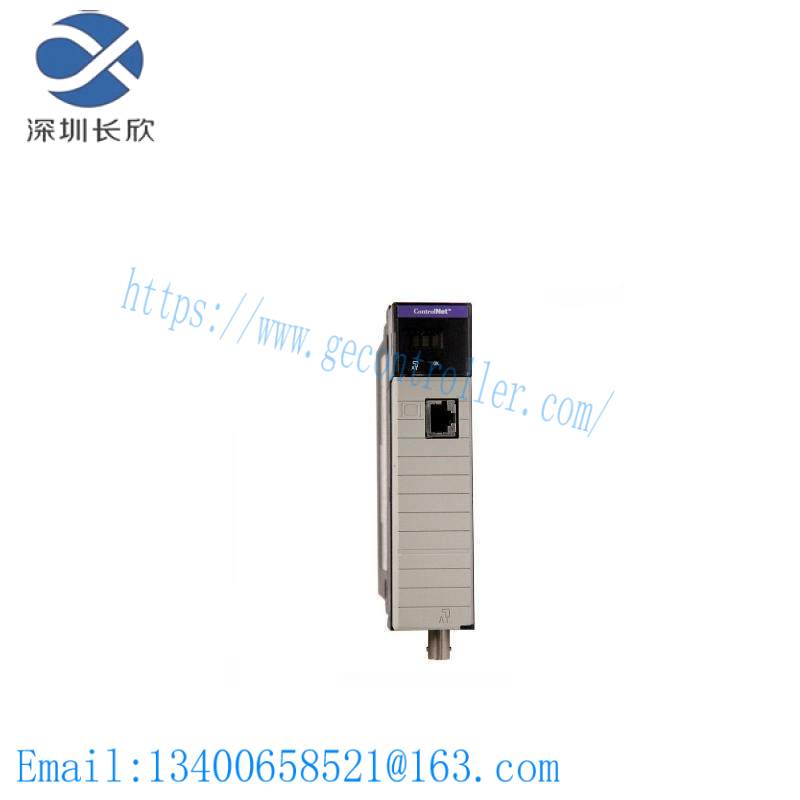

Model Type:ControlLogix Bridge Module
Manufacturer:Allen Bradley
Model Number:1756-CNBD
Communication Protocol:DeviceNet
Amperage Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation:30 V (Continuous), Basic Insulation Type
Number of Channels:2
Current Rating (Redundant):Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC
RfI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000 – 2700 MHz
Conducted Emissions:10 VRMS with 1 KHz sine-wave 80% AM from 150 KHz – 80 MHz
Temperature Range:Operating: -10°C to +55°C, Storage: -25°C to +85°C
Enclosure:Open Type
Experience enhanced industrial automation with the Allen Bradley AB 1756-CNB ControlLogix Bridge Module, a critical component designed to bridge the gap between ControlLogix systems and diverse industrial protocols. This state-of-the-art module ensures seamless communication, optimizing system performance and efficiency.
Engineered for robust operation within a wide temperature range (-40°C to +70°C), the AB 1756-CNB is built to withstand the harshest industrial environments. Its open type enclosure facilitates easy installation and maintenance, ensuring continuous operation without compromise.
Featuring advanced isolation technology, this module provides reliable electrical insulation, safeguarding against interference and ensuring data integrity across networks. The high amperage rating allows for efficient current handling, making it suitable for a broad spectrum of applications.
The AB 1756-CNB supports multiple communication protocols, including DeviceNet and ControlNet, enabling interoperability with a multitude of devices and systems. This versatility enhances the flexibility of your automation infrastructure, allowing for seamless integration and streamlined workflows.
Backed by Allen Bradley‘s commitment to quality and reliability, the AB 1756-CNB ControlLogix Bridge Module is designed to meet the demanding requirements of today’s industrial settings. Its compact design, combined with superior technical specifications, makes it an indispensable addition to any modern automation system.
