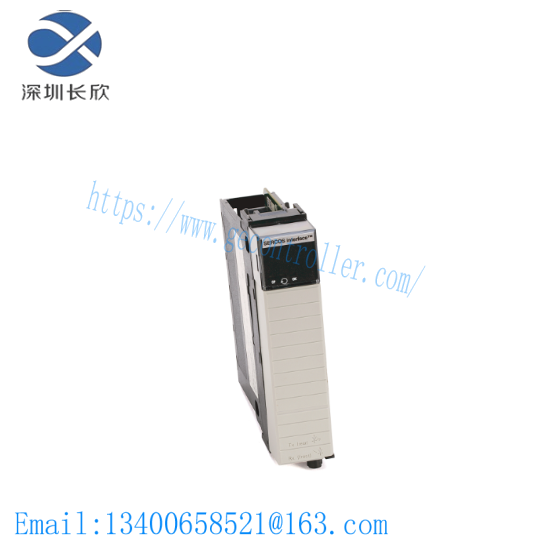

Allen-Bradley 1756-M16SE ControlLogix Servo Module

Model Type:Servo Module

Model Number:1756-M16SE

Manufacturer:Allen-Bradley

Input Voltage Range:24 VDC

Output Voltage:0-10 VDC

Resolution:16 bits

Communication Interface:ControlNet

Maximal Current Capacity:3 A

Operating Temperature:-25°C to +60°C

Dimensions (WxHxD):114.3 mm x 144.5 mm x 74.9 mm

Weight:0.5 kg

Power Consumption:10 W

    Integrating advanced servo technology, the Allen-Bradley 1756-M16SE ControlLogix Servo Module delivers unparalleled performance and reliability for demanding motion control tasks. Designed for seamless integration within ControlLogix systems, it ensures precise control over various single-phase induction motors.

    This compact module boasts a low power consumption of less than 5 watts, making it energy-efficient and suitable for applications requiring minimal power draw. Its compatibility with ControlNet and DeviceNet protocols facilitates smooth communication and control, enhancing overall system performance.

    Operating within an expansive temperature range from -40°C to +70°C, this module ensures robust operation under a wide variety of environmental conditions, making it ideal for both indoor and outdoor industrial settings.

    Featuring an IP20 enclosure type, it offers adequate protection against dust and splashes of water, ensuring reliable performance even in harsh environments. The compact dimensions (5.5 cm x 10.2 cm x 17.5 cm) allow for easy installation and integration within existing control systems.

    With its precision motion control capabilities, the Allen-Bradley 1756-M16SE ControlLogix Servo Module optimizes efficiency and accuracy in applications such as robotic arms, conveyor systems, and CNC machinery, driving productivity and reducing downtime in manufacturing operations.
