Model Type:Bridge Module
Manufacturer:Allen-Bradley
Model Number:1756-CNBD
Communication Protocol:ControlNet
Amperage Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC
Isolation:30 V (Continuous)
Rfi Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Enclosure Type:Open Type
Connection Compatibility:Compliant shielded or unshielded twisted pair
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration Resistance:2 G
Shock Resistance:30 G

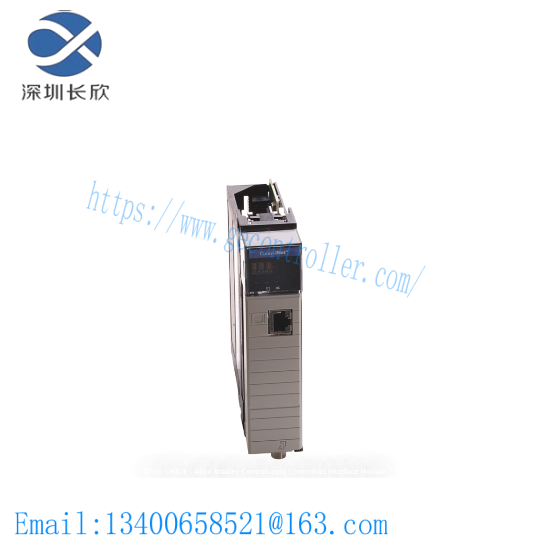

Engineered for robust industrial applications, the 1756-CNB/D ControlLogix ControlNet Bridge Module is designed to optimize communication between ControlLogix PLCs and ControlNet devices, facilitating enhanced system integration and efficiency.
Featuring a compact yet durable M12 connector, this module ensures reliable data transmission even under harsh industrial conditions, making it ideal for a wide range of manufacturing and process control applications.
With its high-speed 10 Mbps data rate, the 1756-CNB/D enables fast and efficient transfer of critical information between ControlLogix systems and other ControlNet components, significantly improving operational responsiveness and productivity.
The module’s compatibility with Allen-Bradley’s comprehensive automation ecosystem allows for seamless integration with existing control infrastructure, streamlining the setup and maintenance processes for end-users.
Crafted from high-quality materials for long-lasting durability, the 1756-CNB/D ControlNet Bridge Module boasts an ergonomic design that simplifies installation and maintenance, ensuring minimal downtime and maximum operational reliability.
