Model Type:1746SC
Model Number:1746SC-IA8I
Manufacturer:Allen-Bradley
Product Type:Analog Input Module
Number of Channels:8
Common Mode Voltage Range:-10 to +10 VDC
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS
Input Range:-10 to +10 VDC or 1 LSB
Current Rating:Backplane current draw: 35 mA at 5 V, 85 mA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Temperature Rating:0 to 60°C
Environmental Conditions:5 to 95% non-condensing relative humidity
Shock Resistance:30 G

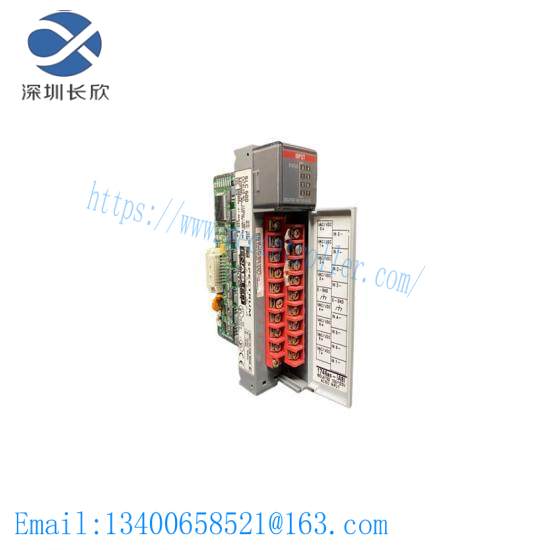

The Allen-Bradley 1746SC-IA8I Analog Input Module is specifically engineered for applications requiring high precision and reliability in industrial settings. It offers an impressive 8-channel design, each capable of accurately measuring and transmitting analog signals within the range of -10VDC to +10VDC. With a sampling rate of 10 samples per second, this module ensures real-time data acquisition, making it ideal for dynamic control systems.
Featuring a ±0.01% accuracy level, the 1746SC-IA8I ensures minimal error in data transmission, crucial for industries where precision is paramount. Its compatibility with the ControlLogix network allows seamless integration into existing automation systems, enhancing efficiency and reducing setup time.
Engineered for robust performance, this module operates within a wide temperature range of -40°C to +85°C, ensuring reliable operation under various environmental conditions. Its ability to withstand humidity levels from 5% to 95% without condensation guarantees consistent performance even in humid environments.
The Allen-Bradley 1746SC-IA8I is designed with energy efficiency in mind, consuming only 5 watts of power. This not only reduces operational costs but also helps in maintaining a sustainable working environment.
For installation, the module features a compact and durable design, compatible with standard control cabinets. It can be easily mounted using screws or clips, offering flexibility in integration. Comprehensive documentation and support are provided to ensure a smooth setup and maintenance process.
