Number of Channels:8
Input Range:-10V to +10V
Input Current:0mA to 21.5mA
Operating Voltage:24VDC ±10%
Minimum Output Current:300mA
Current Output Ranges:4-20mA, 0-20mA, 0-21mA, 0-21.5mA
Backplane Current Rating:120mA at 5VDC, 250mA at 24VDC (with J4 jumper set to rack), 0mA at 24VDC (with J4 jumper set to EXT)
Isolation:Backplane: 500VDC, Communication circuits: 500VDC

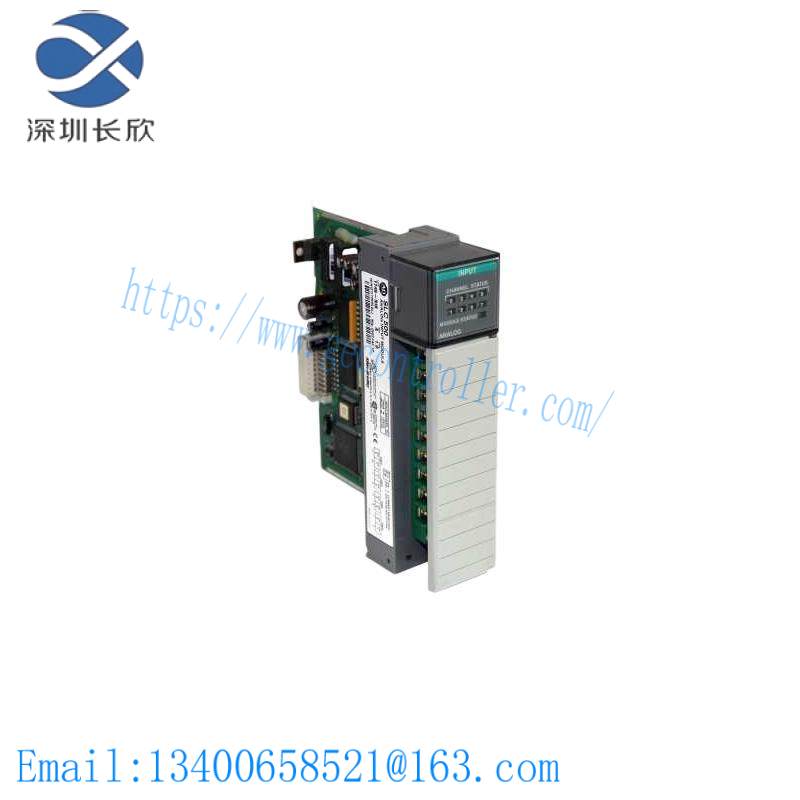

The Allen Bradley 1746-NI8I module is designed for seamless integration into Allen-Bradley SLC 500 systems, offering high-resolution analog input capabilities for precise data collection.
Featuring an open-type enclosure, this module is suitable for use in harsh industrial environments, ensuring robust performance and reliability.
With its ability to handle a wide range of current outputs, the 1746-NI8I is ideal for applications requiring precise control over actuators, sensors, and other devices.
Easy to configure and maintain, this module supports various voltage levels, providing flexibility for diverse industrial settings and ensuring compatibility with a broad spectrum of equipment.
Equipped with status LEDs for monitoring operational status, the Allen Bradley 1746-NI8I module ensures real-time feedback, enabling proactive system management and maintenance.
