Number of Channels:16
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range for Voltage:-10 To 10 VDC – 1 LSB
Current Rating for Backplane:55 MA
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Rating:Backplane: 2.425 W
Enclosure Type:Open Type

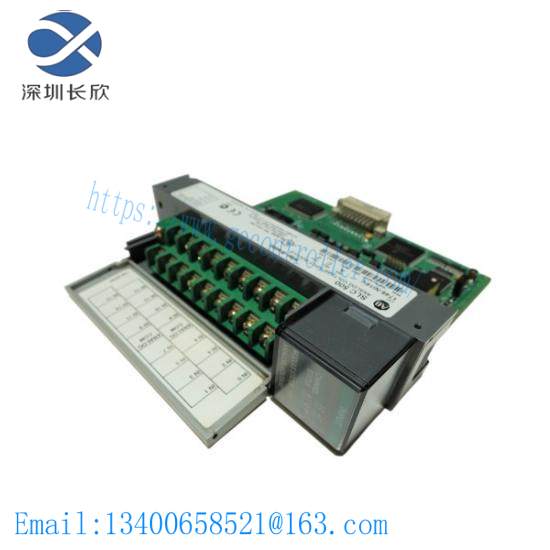

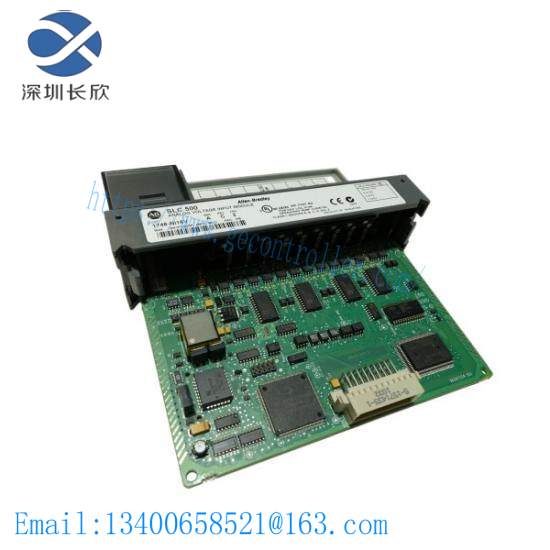

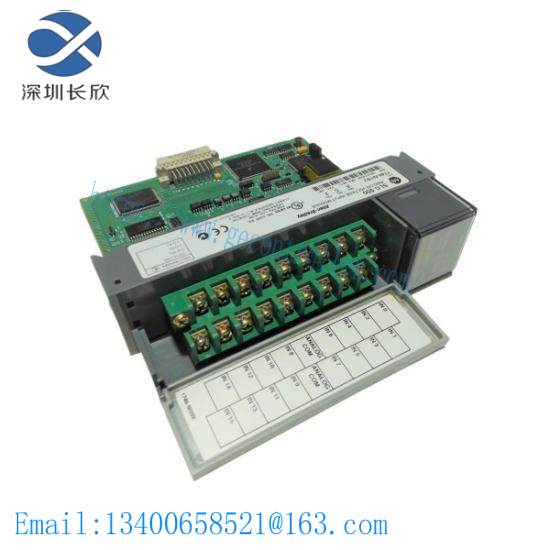

Introducing the Allen Bradley 1746-NI16V, an indispensable tool for enhancing precision and reliability in your industrial control systems. This module boasts a high-resolution 16-channel analog input design, ideal for applications requiring accurate data capture and analysis.
Crafted with robust materials and advanced technology, the 1746-NI16V ensures stable performance under demanding conditions. Its comprehensive range of features supports a wide array of industrial processes, making it a versatile choice for various applications.
With its open-type enclosure and 500 VDC isolation, the module provides unparalleled safety and reliability, safeguarding against electrical hazards. The 35 MA at 5 V and 85 MA at 24 V current rating ensures efficient power management, while the 2.425 W power rating ensures reliable operation.
The 1746-NI16V’s high-resolution input range from -20 to 20 V, with an absolute input voltage of +/- 7.5 VDC or 7.5 VAC RMS, offers exceptional accuracy and compatibility with diverse sensor types. Its capability to handle a broad input current range (-30 to 30 mA) makes it suitable for a multitude of measurement tasks.
Ease of integration with Allen Bradley‘s PLC systems and its compatibility with industry-standard protocols make the 1746-NI16V a seamless addition to your existing automation infrastructure. This module is designed to elevate the precision and efficiency of your operations, offering a competitive edge in the realm of industrial automation.
