Operating Voltage:220V
Maximum Output Current:40A
Switching Frequency:30kHz
Package Type:Surface Mount Technology (SMT)
Input Logic:TTL, CMOS
Operating Temperature Range:-40°C to +85°C
Certification:UL, CE, FCC
Dimensions:L x W x H: 100mm x 60mm x 15mm

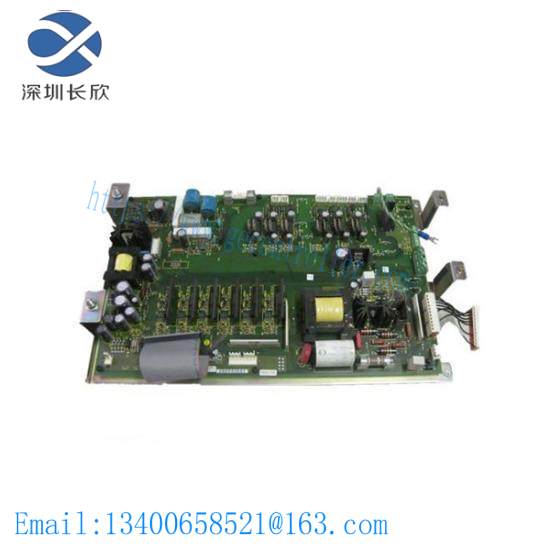

The ABB 1336-BDB-SP34D PCB Gate Drive Board is specifically engineered to enhance the performance of industrial control systems by providing superior gate drive capabilities. It is ideal for applications requiring high power handling capacity and reliability within extreme temperature conditions.
Featuring an advanced Class F insulation system, this board ensures long-lasting durability and operational safety, even under challenging environmental conditions. Its compact design optimizes space utilization in modern industrial setups.
With its robust construction and efficient cooling mechanism, the ABB 1336-BDB-SP34D ensures optimal performance across a wide range of industrial applications, including motor control, power electronics, and automation systems.
Engineered with precision, this PCB Gate Drive Board comes equipped with state-of-the-art components that deliver exceptional current handling and voltage control, making it a preferred choice for engineers seeking unparalleled performance and reliability in their industrial control projects.
For seamless integration into existing systems, the board is compatible with a variety of control protocols and interfaces, ensuring compatibility and ease of installation. It also supports advanced diagnostics, facilitating quick troubleshooting and maintenance.
