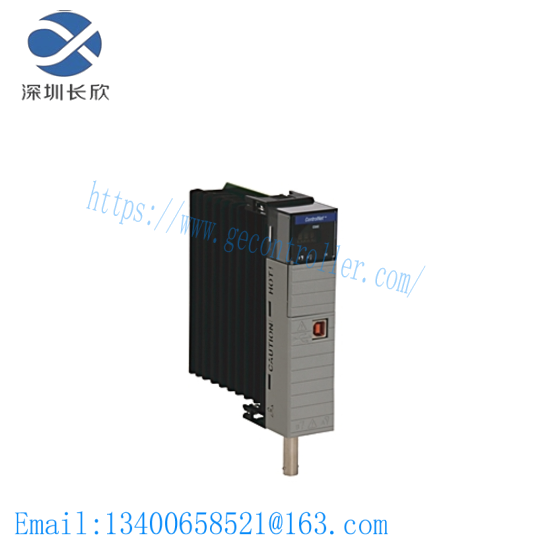

Advanced 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module – Enhancing Industrial Network Reliability

Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/C

Number Of Channels:2

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Communication Interface:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure Type:Open Type

Rfi Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ Sine-Wave 80% AM from 2000 – 2700 MHz

Temperature Range:0 – 60 °C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Connection:Ethernet

USB Port:Not Included

    Integrating advanced technology from Allen-Bradley, the 1756-CN2R/C module is a powerhouse for industrial automation networks, boasting a dual-channel design for unparalleled redundancy and reliability.

    Crafted for seamless integration with ControlLogix systems, this module ensures robust and continuous communication, critical for mission-critical applications where downtime is not an option.

    Its high isolation capacity and precise current rating offer unparalleled safety margins, safeguarding against potential disruptions and maintaining system integrity under various environmental conditions.

    Equipped with state-of-the-art RFI suppression technologies, the 1756-CN2R/C module minimizes interference, ensuring clear and uninterrupted data transmission even in the most challenging environments.

    With its open-type enclosure and compatibility with ControlNet and ControlLogix protocols, this module offers flexibility and ease of integration into existing industrial automation infrastructures, streamlining operations and enhancing efficiency.
