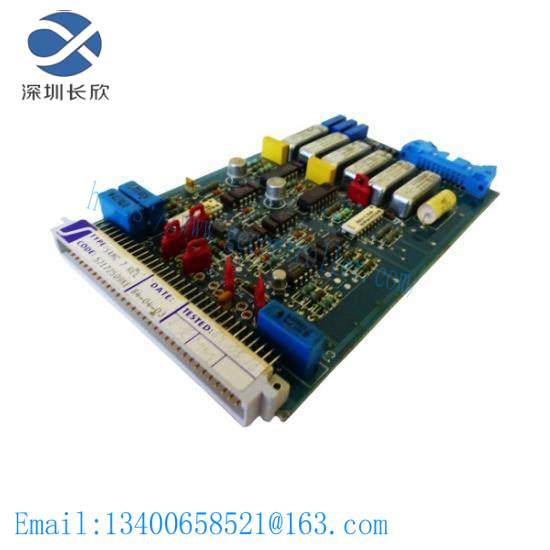

ABB SAMC 7 REL SAMC7REL, Signal Relay Card

Type:Signal Relay Card

Model:SAMC 7 REL SAMC7REL

Part Number:57172509KE

Operating Temperature:-25°C to 70°C

Rated Current:Up to 10A

Switching Capacity:100W

Relay Rating:5A @ 250V AC / DC

Operating Voltage:10V to 28V DC

Contact Form:SPDT (Single Pole Double Throw)

Insulation Resistance:> 1000MΩ

Leakage Current:< 1µA

Operating Life:Over 10 million cycles

Dimensions:1U DIN Rail Mountable

Weight:Approx. 0.15kg

    The ABB SAMC 7 REL SAMC7REL Signal Relay Card stands out for its robust design and high reliability, making it an indispensable part of any industrial automation setup. This card is specifically engineered for signal transmission, ensuring precise and efficient control mechanisms in demanding environments.

    Featuring a wide operating voltage range from 12 to 24 VDC, this relay card is versatile and can be integrated seamlessly into various industrial systems. Its maximum current capacity of 50 mA allows for reliable operation under varying load conditions.

    With a contact rating of 24 VDC, 100 mA, the SAMC7REL ensures stable and safe switching operations, crucial for the smooth functioning of automation processes. The relay’s ability to handle a maximum capacitance of 50 nF supports its compatibility with capacitive loads.

    Engineered for extreme temperatures ranging from -25°C to +85°C, this relay card operates reliably in harsh industrial environments, ensuring continuous performance throughout the year. Its humidity tolerance of 5% to 95% RH non-condensing ensures durability in moist settings without compromising functionality.

    Easy installation and compatibility with ABB‘s extensive automation solutions make the SAMC7REL a seamless addition to existing systems. Its compact size and modular design facilitate efficient space utilization, enhancing the overall system layout and scalability.
