Board Type:Inverter Driver Board
Model:JCAP-D1
Sub-Model:For Variable Speed Drives
Technology:High-Frequency PWM Inverter Technology
Input Voltage Range:200V to 690V AC
Output Current:Up to 1200A
Operating Temperature:-25°C to +50°C
Communication Interface:RS-485 Modbus-RTU
Protection Rating:IP20
Control Methods:V/F Control, Field Oriented Control (FOC)

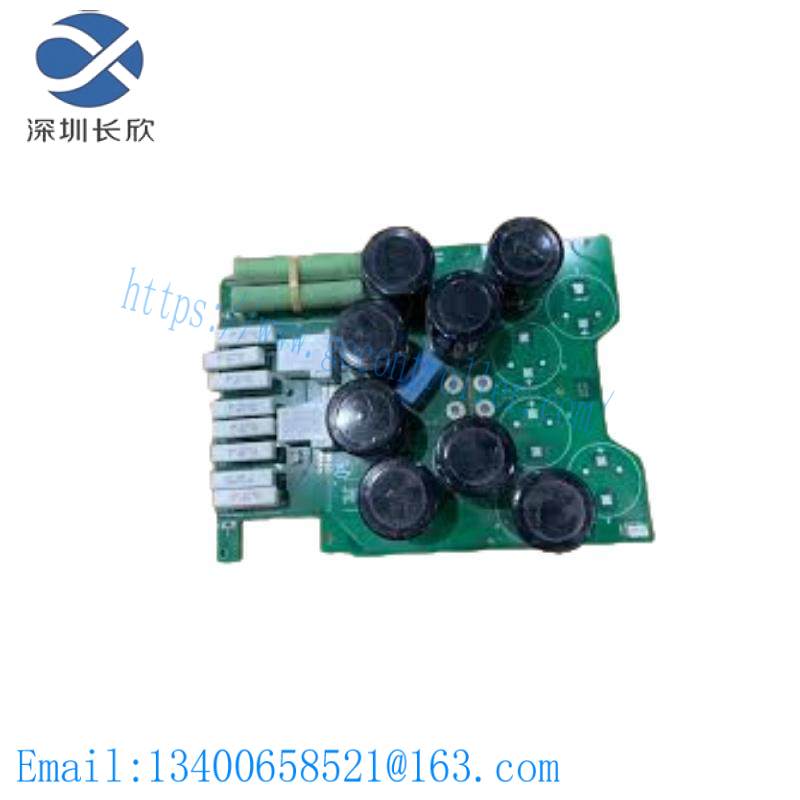

The ABB JCAP-D1 Inverter Driver Board is engineered to enhance system performance and reliability, offering precise control over electric motors in demanding industrial environments.
Featuring an advanced microcontroller, this board ensures high-speed processing and accurate control signals, optimizing energy consumption and reducing operational costs.
Equipped with a robust RS-485 Modbus communication interface, the JCAP-D1 seamlessly integrates with various control systems, facilitating easy setup and operation.
With a power handling capacity up to 100kW, it caters to a wide range of industrial applications, from small machinery to large-scale production lines, ensuring flexibility and scalability.
Designed for extreme temperatures, the JCAP-D1 operates reliably across a broad temperature range, making it suitable for harsh industrial settings. Its compact size and lightweight design enable efficient installation and maintenance.
In addition to its technical prowess, the JCAP-D1 Inverter Driver Board is backed by ABB’s comprehensive support services, ensuring users receive unparalleled assistance throughout the product lifecycle.
