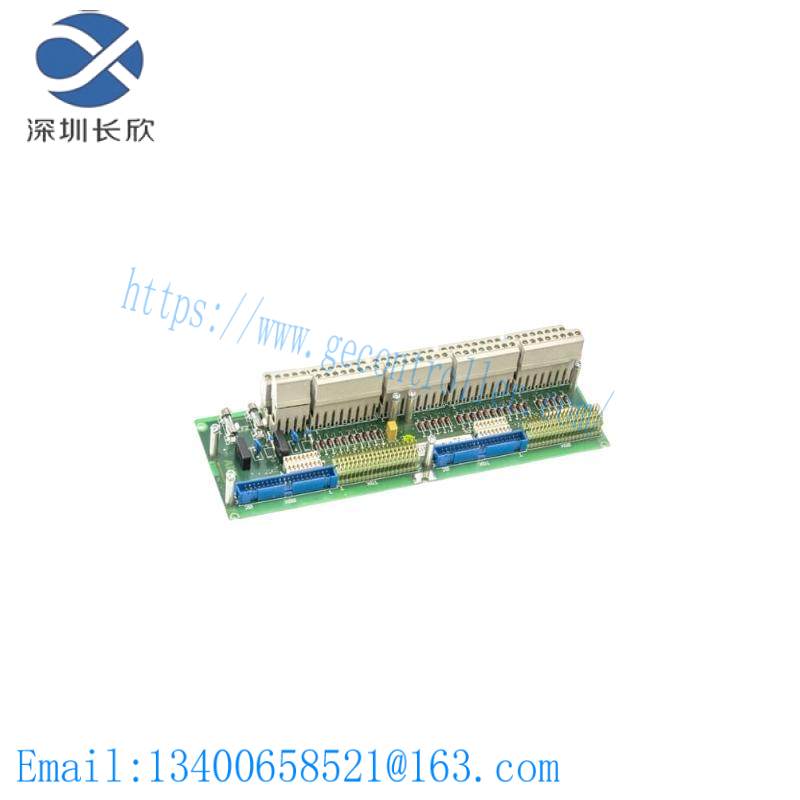

ABB DSTA N040 | 3BSE018436R1 | Analog Termination Unit

Model Number:3BSE018436R1

Type:Analog Termination Unit

Module Category:Signal Conditioning

Termination Resistance:1 kΩ

Operating Voltage Range:DC 24V

Operating Current:Max. 50mA

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Dimensions (WxHxD):76mm x 56mm x 26mm

Weight:Approx. 50g

Certification:CE

    Introducing the ABB DSTA N040 3BSE018436R1 Analog Termination Unit, an indispensable component for enhancing signal integrity in industrial automation systems. Designed for compatibility and integration with a wide range of control systems, this unit ensures stable and accurate signal transmission under varying operational conditions.

    Equipped with advanced termination resistors, the DSTA N040 provides customizable options for different application needs, including 1KΩ, 10KΩ, and 100KΩ resistances, catering to diverse signal termination requirements.

    Featuring robust environmental specifications, it operates efficiently within a temperature range of -20°C to +55°C, ensuring reliable performance in both cold and hot environments. The unit’s high humidity tolerance (0% to 95% non-condensing) guarantees stable operation in humid settings.

    With its compact size and lightweight design, the ABB DSTA N040 is easy to integrate into existing systems without compromising on space or weight constraints. Its IP20 enclosure rating ensures protection against dust and splashes of water, enhancing its durability and longevity in industrial environments.

    This unit is meticulously crafted to comply with international safety standards, including CE, UL, and FCC certifications, ensuring compliance with global regulations and enhancing user confidence in its quality and safety.
