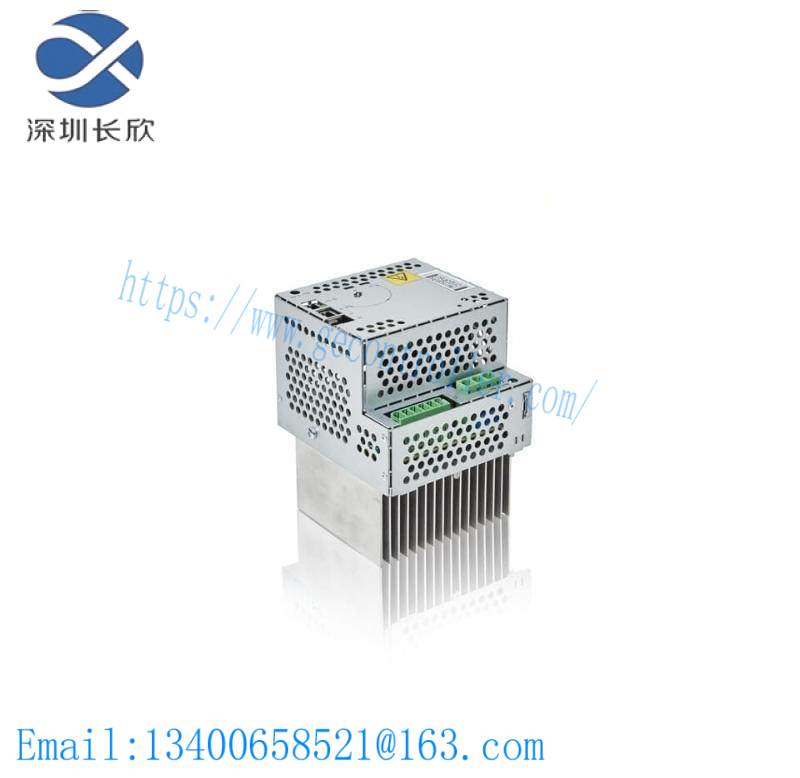

ABB DSQC664 3HAC030923-001 Drive Unit

Operating Voltage:220V AC

Output Frequency:50Hz

Input Current:16A

Output Current:24A

Power Factor:≥ 0.9

Protection Class:IP20

Communication Protocol:EtherCAT

Weight:3.5kg

Dimensions:220mm x 140mm x 100mm

    The ABB DSQC664 3HAC030923-001 Drive Unit is designed to deliver exceptional performance and reliability in demanding industrial environments. Its compact size and robust construction make it ideal for integration into existing control systems without compromising on functionality or efficiency.

    Featuring advanced communication protocols such as EtherCAT and CANopen, this drive unit ensures seamless data exchange with other components, optimizing the overall system performance. The RS-485 connector provides a flexible interface for easy configuration and diagnostics.

    With an operating voltage of 24 V DC and a maximum output frequency of 20 kHz, this drive unit is capable of handling a wide range of motor applications, from low-speed operations to high-speed processes. Its 1 kW output power ensures efficient energy utilization, making it suitable for heavy-duty tasks.

    Designed with industrial safety in mind, the DSQC664 3HAC030923-001 complies with the latest industry standards for environmental ratings, ensuring it can withstand harsh conditions without degradation in performance. This makes it a reliable choice for applications exposed to dust, moisture, and varying temperatures.

    Installation and maintenance are straightforward due to its user-friendly design. Quick-release connectors facilitate easy connection and disconnection, while built-in diagnostic tools help in monitoring the system status, ensuring minimal downtime and efficient troubleshooting.
