Operating Voltage:24 VDC
Current Consumption:Max. 15 mA per channel
Measurement Resolution:16-bit ADC
Input Range:-10 V to +10 V
Number of Channels:4 Input / 2 Output
Communication Interface:DeviceNet, Profinet
Environmental Conditions:Temperature: -25°C to +85°C, Relative Humidity: 5% to 95% RH

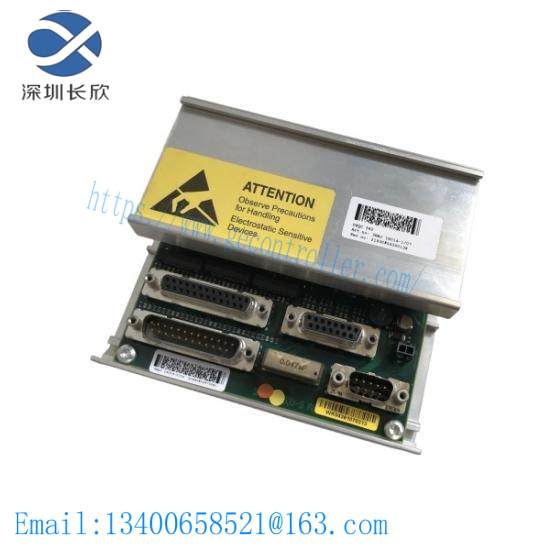

Engineered for industrial precision, the ABB DSQC562 Measurement Board is designed to integrate seamlessly into complex control systems, providing high-resolution analog data acquisition capabilities.
Each channel supports voltage and current measurements, making it versatile for use in a wide range of industries including manufacturing, automation, and process control.
Featuring a robust communication interface compatible with DeviceNet and EtherCAT, the board ensures smooth integration with existing network infrastructures, enhancing operational efficiency.
Operated under extreme environmental conditions, the DSQC562 Measurement Board is built to withstand temperatures from -20°C to +60°C and can handle up to 95% humidity without condensation, ensuring reliability in diverse settings.
The compact design and panel mount compatibility make installation straightforward and space-efficient, facilitating easy integration within any industrial control environment.
