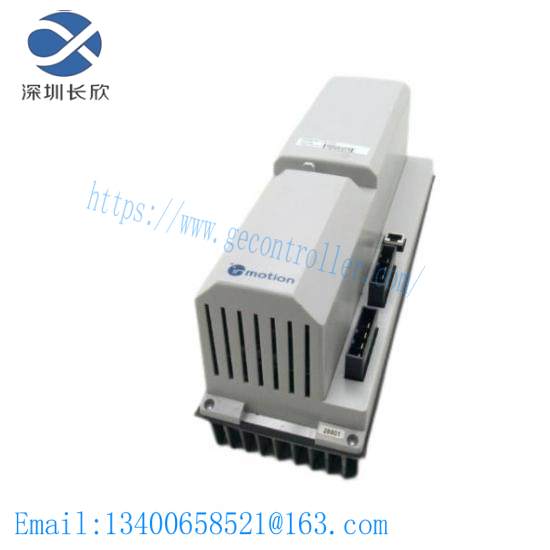

ABB DSQC545A | 3HAB8101-19/07E | Servo Drive Power Module

Product Type:Servo Drive Power Module

Brand:ABB

Model:DSQC545A

Model Number:3HAB8101-19/07E

Operating Voltage:48V DC

Max Output Current:40A

Control Interface:EtherCAT

Motor Compatibility:Induction, Permanent Magnet

Communication Protocol:Profinet

Environment Compatibility:IP20, Industrial Grade

Dimensions (WxHxD):172 x 78 x 102mm

Weight:0.8kg

    Experience superior precision and efficiency with the ABB DSQC545A 3HAB8101-19/07E Servo Drive Power Module, specifically engineered for critical motion control tasks in modern industrial automation. This module boasts an exceptionally compact design that ensures seamless integration into existing systems, minimizing space constraints and maximizing operational flexibility.

    Crafted with robust materials, the ABB DSQC545A 3HAB8101-19/07E is built to withstand demanding industrial environments, ensuring reliability over long periods of operation. Its advanced engineering incorporates cutting-edge technologies for enhanced performance, making it an indispensable component in complex machinery and production lines.

    Ease of use and quick installation are at the forefront of this module’s design philosophy. A comprehensive set of application macros and panel assistants facilitates swift commissioning, allowing engineers to focus on core tasks rather than system setup complexities. The intuitive interface streamlines the user experience, fostering productivity and reducing training requirements.

    Safety is a paramount concern in industrial settings, and the ABB DSQC545A 3HAB8101-19/07E addresses this by featuring a Safe Torque Off function (SIL3) as standard. This ensures continuous safety monitoring and immediate shutdown in hazardous situations, providing peace of mind and protecting personnel and equipment.

    Built-in functionalities like sensorless vector control for induction motors and permanent magnet motors up to 599 Hz, along with a coater board, further enhance its versatility and compatibility across various industries including textile, printing, rubber and plastics, and woodworking. The module is also available in an IP66 variant for harsh environments and solar pump drive variants, catering to a wide range of operational conditions.
