Operating Voltage:DC 24V
Output Current:Up to 0.5A per channel
Number of Channels:16
Signal Type:SPST (Single Pole, Single Throw)
Relay Rating:3A @ 24VDC
Isolation Rating:2kV AC
Operating Temperature Range:-25°C to +60°C
Dimensions (W x H x D):14mm x 74mm x 114mm
Weight:Approx. 25g
Communication Compatibility:Supports Profibus DP interface

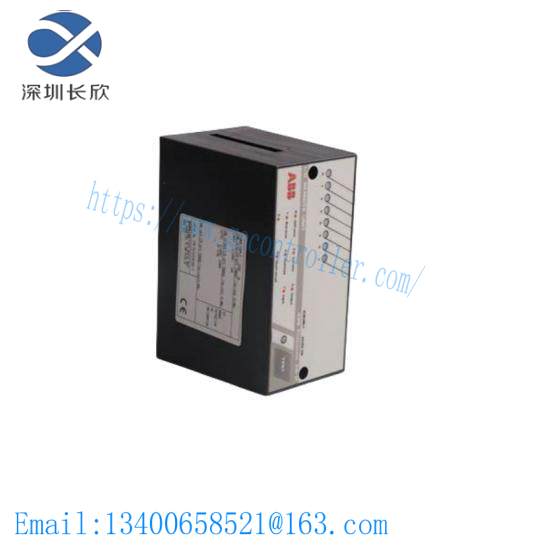

The ABB DO810-EA 3BSE008510R2 is a robust digital output module that seamlessly integrates into ABB‘s comprehensive range of industrial automation products. Designed with precision engineering, this module is equipped with 16 channels capable of handling a maximum load of 5A at 24V DC, ensuring high power delivery and efficiency.
Featuring a 24V DC operating voltage, this module supports a wide variety of industrial processes, from simple switching tasks to complex control scenarios. Its relay output type provides a reliable switching mechanism for a broad spectrum of applications.
The module’s isolation rating of 2000V AC ensures electrical safety and protection against external disturbances, making it suitable for harsh industrial environments. With its Profibus-DP interface, seamless communication with other ABB PLC components is guaranteed, streamlining system integration and enhancing operational reliability.
Compact and lightweight, the ABB DO810-EA 3BSE008510R2 measures 116mm x 116mm x 90mm and weighs just 0.25kg, facilitating easy installation and integration into existing systems without compromising performance. It operates within an impressive temperature range of -20°C to +60°C, ensuring continuous operation even under extreme conditions.
For storage, the module can withstand temperatures ranging from -40°C to +85°C, demonstrating its versatility and durability. This industrial PLC digital output module is not only a testament to ABB‘s commitment to quality and innovation but also a reliable choice for enhancing productivity and efficiency in industrial automation projects.
