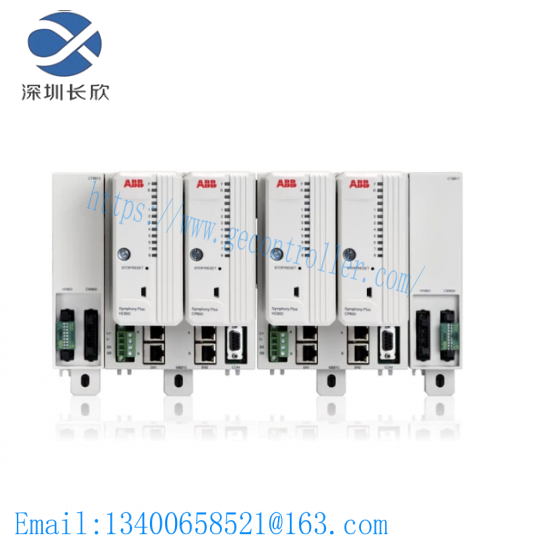

Product Type:Terminal Board
Brand:ABB
Model:CTB810
Series:Industrial Automation
Operating Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +85°C
Input Voltage:AC/DC 12V to 24V
Output Current:Up to 10A
Communication Interface:RS-485
Connectors:24-pin D-sub connector
Dimensions (WxHxD):100mm x 50mm x 30mm
Weight:0.2kg
The ABB CTB810 Terminal Board is a critical component in any industrial control system, offering a versatile solution for power and signal distribution. Its compact design and robust construction make it ideal for harsh industrial environments.
Featuring a UL94 V-0 flame retardant engineered plastic housing, this terminal board ensures safety and reliability in various industrial settings, particularly in areas prone to electrical fires or accidental sparks.
With a wide operating voltage range from 12VDC to 48VDC, the CTB810 is compatible with a variety of power sources commonly found in modern industrial systems. Its high current rating of 10A supports heavy-duty applications without compromising on performance.
Equipped with an IP67-rated connector, this terminal board is protected against dust ingress and can withstand water immersion up to one meter for up to 30 minutes, making it suitable for outdoor or wet environment installations.
Designed with ease of installation and maintenance in mind, the CTB810 Terminal Board features a modular design that allows for quick and straightforward connection of wires. It’s compatible with a wide range of industrial interfaces, enhancing its versatility across different applications.
