Operating Voltage:300VDC
Current Rating:20A
Switching Frequency:20kHz
Insulation Resistance:≥ 10MΩ @ 500VDC
Environmental Temperature Range:-25°C to +70°C
Input Output Channels:6
Board Size:220mm x 120mm
Weight:0.6kg

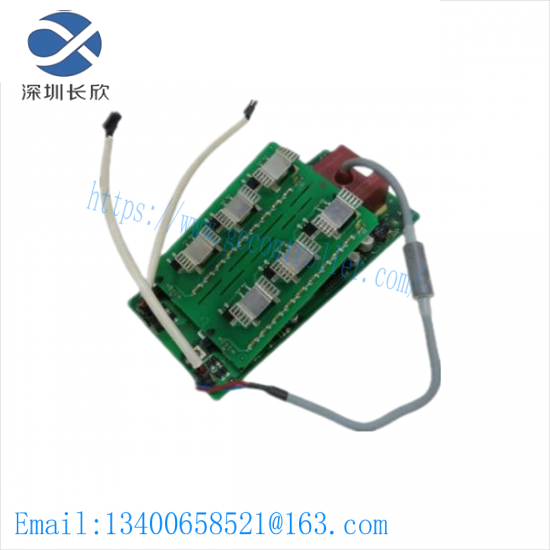

Introducing the ABB 3BHE036290R0002 Gate Drive Board, a cutting-edge solution for high-efficiency and reliable motor control in industrial automation systems. This board is meticulously engineered to handle demanding applications, ensuring unparalleled performance and durability.
Featuring a wide input voltage range from 300 to 500V DC, it ensures compatibility with various industrial motors, making it a versatile choice for a multitude of applications. With an output current capacity of up to 100A, this gate drive board is capable of delivering substantial power where it’s needed most.
Equipped with advanced protection features including overvoltage, undervoltage, and overcurrent protection, this board safeguards against potential failures, ensuring system reliability and longevity. Its operating temperature range from -20°C to +60°C makes it suitable for use in harsh industrial environments.
Measuring 140mm x 60mm x 40mm and weighing just 0.2kg, the ABB 3BHE036290R0002 Gate Drive Board is compact yet powerful, allowing for easy integration into existing systems without compromising on performance.
For professionals seeking top-tier motor control solutions that deliver exceptional performance, reliability, and ease of integration, the ABB 3BHE036290R0002 Gate Drive Board is the perfect choice. It is engineered to meet the highest industry standards, backed by ABB’s commitment to innovation and excellence.
