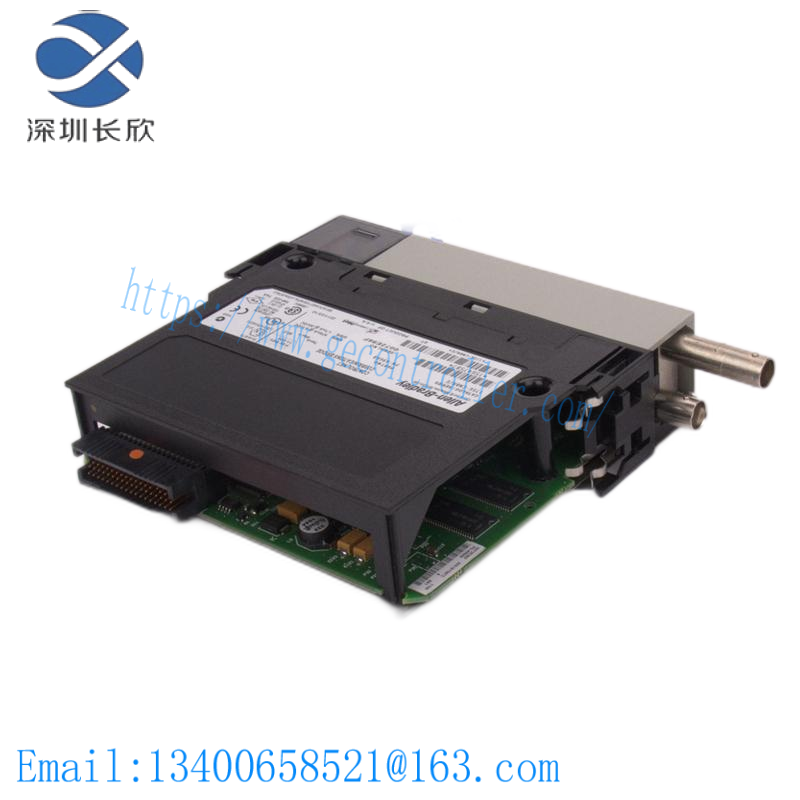

AB 1756-HSC ControlLogix High Speed Counter Module: Precision Timing for Industrial Automation

Model Number:1756-HSC

Manufacturer:Allen-Bradley

Module Type:High Speed Counter

Operating Range:0 – 20 kHz

Resolution:250 ns

Counter Capacity:64 bit

Power Consumption:2.3 W

Communication Interface:ControlLogix EtherNet/IP

Enclosure:IP20

Environmental Rating:NEMA 12

Temperature Range:-40°C to +85°C

Connection Type:DIN Rail Mount

    The AB 1756-HSC ControlLogix High Speed Counter Module is designed for demanding industrial environments, providing unparalleled accuracy and reliability in timing applications. Its compact size and robust construction make it an excellent choice for integrating into existing control systems without compromising on functionality.

    Featuring a wide operating range up to 20 kHz, this module excels in tracking rapid events with precision down to 250 nanoseconds, ensuring that even the fastest processes are accurately captured and managed.

    With its 64-bit counter capacity, the AB 1756-HSC can handle extensive counting tasks without losing track or experiencing overflow errors, making it suitable for long-term monitoring and accumulation of large volumes of data.

    Built for durability, this module operates within a temperature range of -40°C to +85°C, ensuring stable performance in both extreme cold and heat conditions typically encountered in industrial settings.

    For ease of installation and integration, the AB 1756-HSC is compatible with DIN rail mounting, fitting seamlessly into existing control panel layouts. It also supports advanced communication protocols, enhancing compatibility with a wide range of industrial automation systems.
