Model Type:Redundant Bridge Module
ControlLogix Communication Module:Yes
Number of Channels:2
Current Rating (Drawn):970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Isolation Level:30 V (Continuous)
Communication Protocols:ControlNet, ControlNet A/B to Backplane
Enclosure Type:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz
Temperature Rating:0 – 60 °C
Power Dissipation:5.1 W
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface Type:Ethernet, USB Port
Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

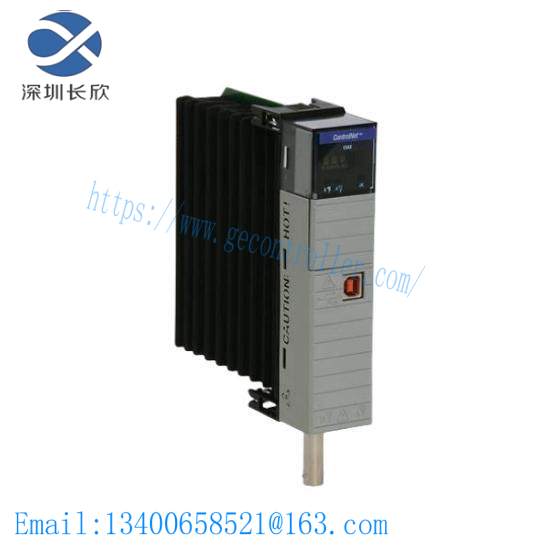

The 1756-CN2RXT ControlNet Redundant Bridge Module is designed to provide high-speed, reliable data communication for industrial control systems, ensuring efficient operation in harsh environments.
Featuring redundant channels, this module guarantees continuous operation even if one channel fails, enhancing system reliability and uptime.
Built with a robust open-type enclosure, it ensures protection against electromagnetic interference, safeguarding data integrity during transmission.
Equipped with Ethernet/IP Bridge technology, it seamlessly integrates with various control systems, enabling flexible and efficient communication networks.
The module is compatible with standard shielded or unshielded twisted pair cables, facilitating easy installation and integration into existing infrastructure.
Certified for operation within a wide temperature range from 0 to 60 degrees Celsius, it’s suitable for diverse industrial settings, ensuring reliable performance year-round.
