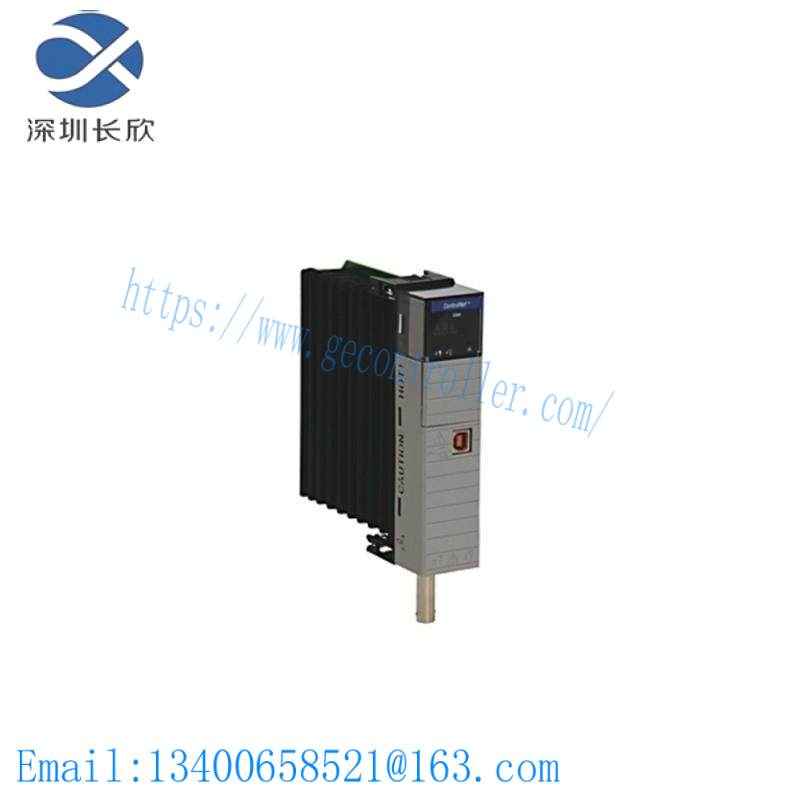

AB 1756-CN2/C Controlnet Interface Module – Advanced Industrial Communication Solution

Manufacturer:Allen-Bradley

Model:1756-CN2/C

Interface:ControlNet

Communication Speed:10/100 Mbps

Protocol:Ethernet/IP

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

    The AB 1756-CN2/C ControlNet Interface Module is a critical component designed for seamless integration into industrial automation systems, ensuring reliable and high-speed communication. This module is specifically tailored for use with Allen-Bradley ControlLogix PLCs, offering an unparalleled level of compatibility and performance.

    With its robust ControlNet protocol support, the 1756-CN2/C Module enables fast and efficient data exchange, optimizing the operational efficiency of complex automation networks. Its high data transfer rate ensures that information is processed quickly and accurately, enhancing overall system responsiveness.

    Built to withstand harsh industrial environments, this module is rated for operation within the temperature range of -40°C to 70°C and can handle humidity up to 95% without condensation. This makes it suitable for a wide range of applications across various industries, from manufacturing floors to process control centers.

    For ease of installation and maintenance, the 1756-CN2/C is designed for chassis mounting, allowing for flexible integration within existing systems. The M8 x 0.8mm connector type ensures secure connections, minimizing the risk of disconnections or disruptions.

    To ensure longevity and reliability, the module operates on a low power consumption of just 1.5W, reducing energy costs and environmental impact. It supports a DC 24V voltage range, providing versatility in terms of power supply options. The 10ms operating cycle guarantees consistent and timely processing of data, ensuring smooth automation operations.
