Model Type:Analog Input Module
Manufacturer:Allen Bradley
Product ID:1746SC-INI4VI
Resolution:High
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Max)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

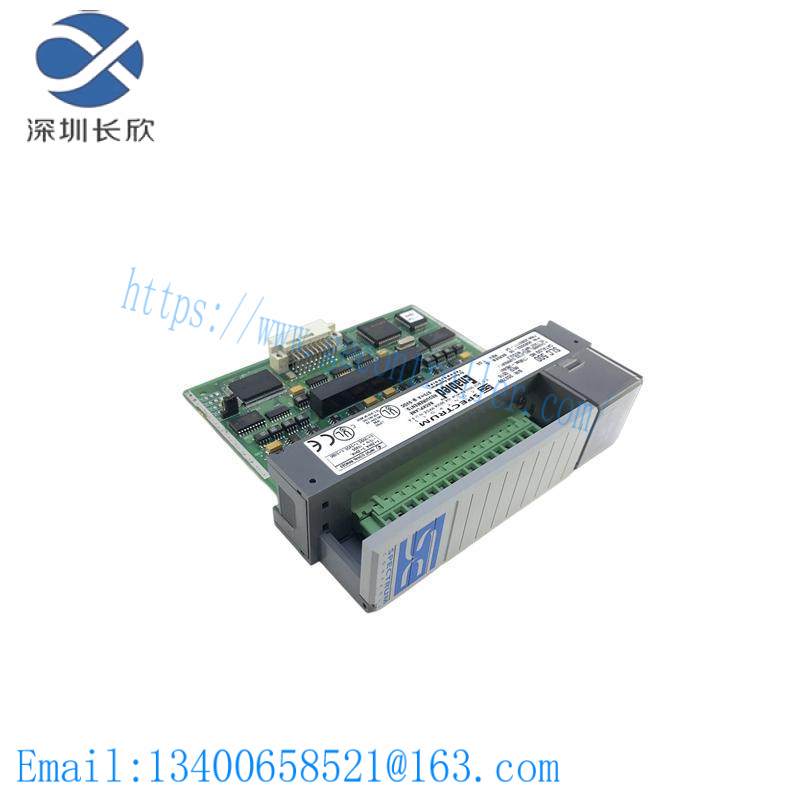

The AB 1746SC INI4VI Analog Input Module offers high-resolution analog input capabilities, essential for monitoring and controlling industrial processes with precision.
It is engineered to handle a wide range of voltage and current inputs, ensuring reliable data collection in diverse environments.
With its robust design and isolation features, this module provides excellent protection against electrical interference, ensuring accurate measurements.
Ideal for integration into SLC500 systems, it supports enhanced functionality through its programmable data and communication capabilities, enabling seamless connection with other devices.
The module’s compact size and modular architecture make it easy to install and integrate into existing control systems, enhancing operational efficiency without compromising on performance.
