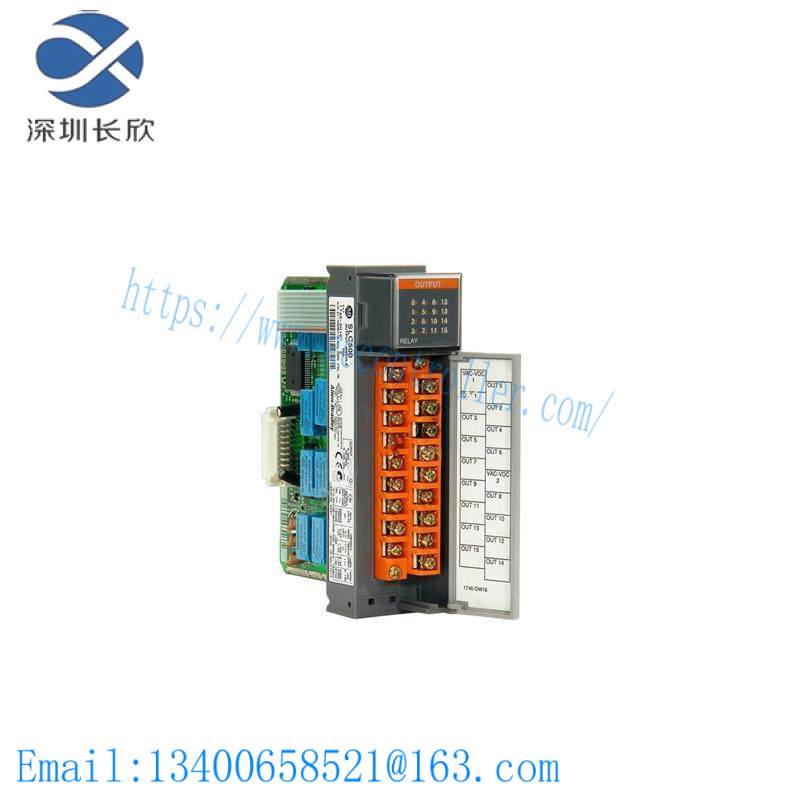

Product Type:Discrete Digital DC Output Module
Model Number:1746-OW16
Manufacturer:Allen-Bradley
Module Type:SLC 500
No. of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10-50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating (Backplane):0.28 A
Continuous Current per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation (Communication Circuits):500 VDC
Isolation (Backplane):1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% Relative Humidity (non-condensing)
Engineered with precision and reliability, the AB 1746-OW16 Output Module is an essential component for industrial control systems, providing seamless integration with Allen-Bradley PLCs.
Featuring a robust design capable of handling demanding industrial environments, this output module ensures consistent performance under extreme conditions.
With its versatile voltage compatibility, the AB 1746-OW16 is suitable for a wide range of applications, from power management to process control, enhancing operational efficiency.
The module’s advanced relay contacts offer high switching capacity and long life, minimizing downtime and maintenance requirements.
Designed with ease of installation in mind, the AB 1746-OW16 can be conveniently mounted on a DIN rail, fitting seamlessly into existing control panel layouts.
Comprehensive isolation measures protect against electrical interference, ensuring reliable data transmission and system stability.
